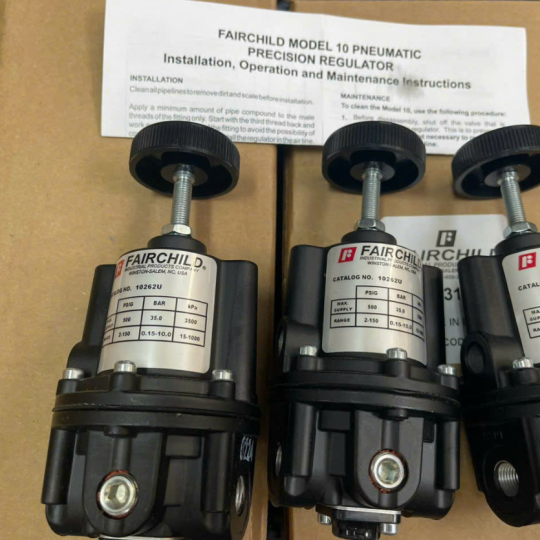

10262U Fairchild Model 10 Pneumatic Precision Regulator

10262U Fairchild Model 10 Pneumatic Precision Regulator

Fairchild Model 10 Pneumatic Precision Regulator, 2-150 psi adjust, 500 psi [35 BAR] supply, 40 SCFM [68m3/Hr]@100 psi supply/20 psi set, 1/4 BSPT line, 1/4 BSPT gauge, Nitrile on Dacron.

Mã sản phẩm:
10262U Fairchild
Giá:
Liên hệ
Lượt xem:
1698

Thông tin sản phẩm
Bình luận

Product Type: High Precision Regulator
Manufacturer: Fairchild
Product Family: Model 10
Accuracy: 0.10 psi
Ambient Temperature: -40 F (-40 C) to 200 F (93.3 C)
Base Model: 10262
Body Material: Aluminum
Elastomer: Nitrile on Dacron
Exhaust Capacity: 5.5 SCFM [9.36m3/Hr] where downstream pressure is 5 psi above 20 psi setpoint
Exhaust Type: Straight (standard)
Flow Capacity: 40 SCFM (68 M³/HR)
Flow Capacity: 40 SCFM
Mounting: Wall (order 09921 bracket below)
Operator: Knob (standard) 1-7/8 in OD
Options: [U] BSPT (tapered)
Sensitivity: 1/8 in WC
Trim: Zinc Plated Steel Brass
Pressure Range: 2-150 psi
Pipe Size: 1/4 BSPT
Supply Pressure: 500 psi
