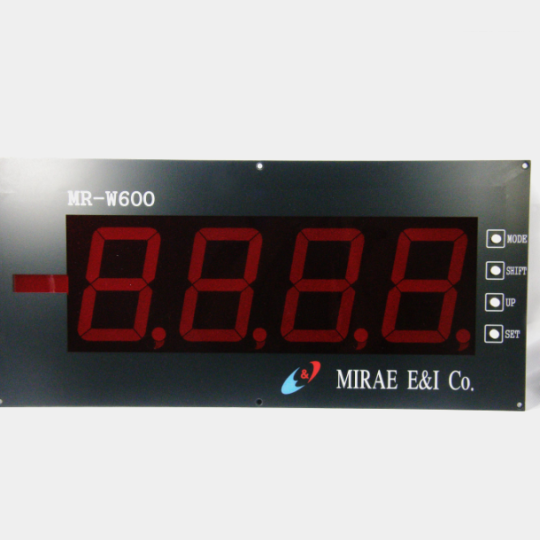

Bộ chỉ báo kỹ thuật số Digital indicator Model MR-W600, MIRAE E&I
Full multi-input for various input signals (RTD, T/C, mV, V, mA)
Use of high-performance, high-accuracy 16BIT A/D Converter
Diversification of uses with various built-in Peak Hold functions
Equipped with RS-485 communication function for remote monitoring/control
Equipped with ALARM 4POINT for alarm output
Equipped with integrated current output (4-20mA)
Output value can be arbitrarily set (Scale, Linear, Reverse)
Indicator specifications: 4Digit FND (-9999 ~ 9999)
FND size: 8000(0.56inch, W200(2.3inch), W600(4inch)
- Measurement and display cycle: 200ms (mV, Volt, mA Type)
- Input resistance: 400kΩ for Volt Type, 1MΩ for other types
- Signal source resistance: Pt100Ω - 30Ω/Line, Other Type - 300Ω/Line
- Common Mode Rejection Ratio: 140db or more.
- Normal Mode Rejection Ratio: 60db or more.
- Built-in moving average filter.
- Built-in sensor power: DC24V/30mA / within ±0.5%.
- Temperature coefficient: 0.015%/℃
- Accuracy: ±0.2% FS.
- Insulated current output (option): Current: 4-20mA/DC, maximum load resistance: 600Ω
- Contact output type: No (Normal open) / Normal close is selected when ordering.
- Contact allowable load: 0.5A / 125VA, 2A / 30VDC
- Conditions of use: Operating temperature, humidity: -10 ~ 60℃, 10 ~ 90%RH
- Storage temperature and humidity: -20 ~ 70℃, 5 ~ 95%RH
- Power voltage: AC90~250V (50/60Hz) or DC24V (option)
- Power consumption: 4VA max.
- Insulation resistance: 100MΩ / 500VDC (FG-Input, FG-Power, Power-Input, Input-Output)
- Communication specifications (option): RS485 (2 lines), communication speed: 480bps, ID (address) setting: 0 ~ 15
