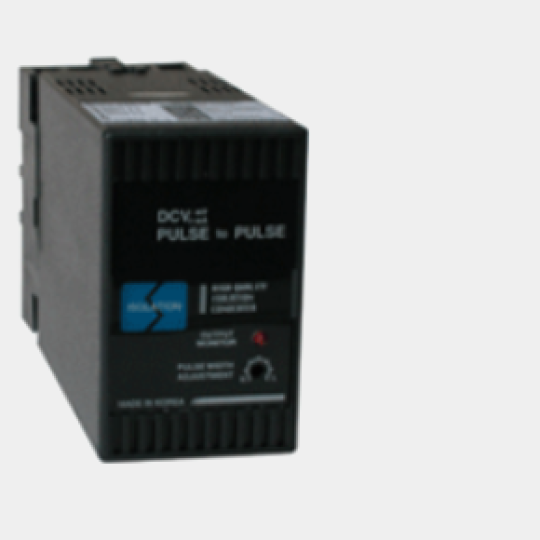

Bộ chuyển đổi tín hiệu signal converter Model MR-CPS2, MIRAE E&I
- 제품크기 Small size(mm) : 83(H), 51(W), 102mm(D)
- 절 연 Isolation : input to output to power supply.
- 취부방식 Wiring :teminal socket wiring.
- 외함재질 Case & color : black ABS plastic case.
- 제품무게 Weight : about 400g
- 사용온도 Operating ambient temperature : 0 - 50℃
- 보관온도 Non operating ambient temperature : -20 ~ 80℃
- 온도오차 Temperature coefficient : 0.015%/℃
- 동작습도 Operating ambient humidity : 90% RH max.(non condensing)
- 절연저항 Insulation resistance : greater than 100Mohm with 500VDC
- 절연내압 Dielectric strength : 1500VAC @ 1minute (input to outut to power)
- 변환오차 Conversion accuracy : 0.15% max.
- 응답속도 Response time : 0 - 90% (0.5sec)
