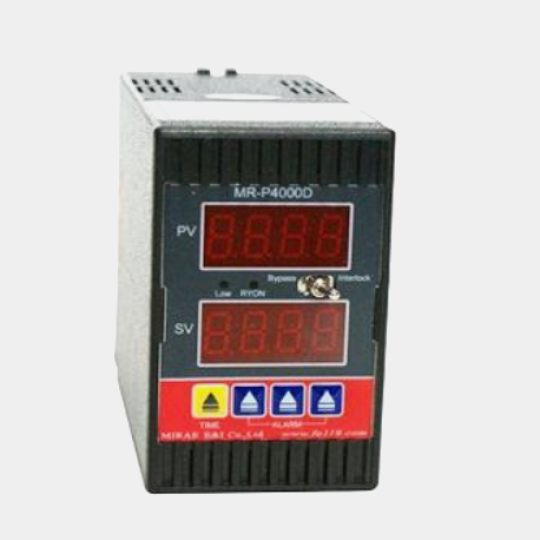

MR-P4000D Programmable Transducer

Programmable pulse input alarm setter signal isolation converter PROGRAMMABLE PULSE CONVERTER

Programmable signal converter

This is a converter that receives signals such as alternating current, pulse, and variable resistance and transmits them as an isolated DC signal.

MR-PST: Sets the variable resistance (POTENTIOMETER) input to the user's desired value and converts it to a direct current signal.

It is a signal isolation converter.

MR-AMS: A signal isolation converter for contact output that uses AC signals as an input source and corresponds to the High & Low setting values of 2 points.

no see.

MR-P4000: Receives PULSE input and has various built-in functions such as RPM indication function and ALARM function.

It is a signal isolation converter that converts to .

MR-9000: Receives signals from various equipment through MULTI input and converts them into 2Point ALARM, communication output, and direct current signals.

It is a signal isolation converter.

- Product size Small size(mm): 83(H), 51(W), 102mm(D)

- Power specifications Power: AC90~250V, 50/60Hz, DC24V (Option) - Isolation: input to output to power supply.

- Installation method Wiring: terminal socket wiring

- Enclosure material Case & color: black ABS plastic case.

- Product weight: about 400g

- Operating ambient temperature: 0 - 50℃

- Storage temperature Non operating ambient temperature: -20 ~ 80℃

- Operating ambient humidity: 90% RH max.(non condensing)

- Insulation resistance: greater than 100Mohm with 500VDC

- Conversion accuracy: 0.15% max
