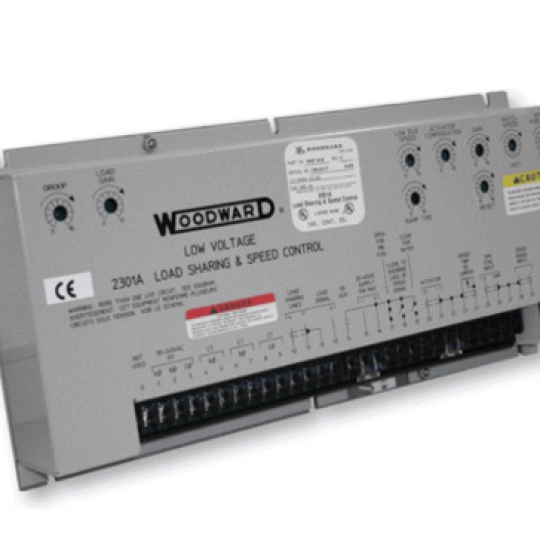

2301A Electronic Load Sharing and Speed Control

General Specifications

Power Supply Rating 90–150 Vdc or 85–132 Vac for High Voltage

models

20–40 Vdc for Low Voltage models

Power Consumption less than or equal to 15 W nominal

Inputs—

Load Sensing 90–240 Vac 3ø 45–66 Hz 3ø current transformer

input

Speed Sensor Input Impedance 100–300 Ω

Speed Sensor magnetic pickup 1.0 Vac minimum to 30 Vac

maximum

Speed Trim 0–100 Ω for 0 to 10% speed change

Speed Setting terminals 23–24 jumpered, internally adjustable

100 Ω potentiometer allows external 0–10%

speed trim

Idle Speed Select external switch, open terminals 19 to 16

Droop external switch, open terminals 14 to 16

Synchronizer ±5 Vdc for speed change with Woodward SPMA synchronizer

Load Sharing 0–6 Vdc

Outputs—

Actuator 7.5 Vdc max for 0 to 214 mA with 35 Ω coil

Adjustments—

Rated Speed 11 450 Hz

Acceleration Ramp (±Idle to Rated) 0–10 s, switch activated, close terminals 19 to

16

Actuator Compensation time constant compatibility 0–500 ms

Low Idle Speed 55% rated

Load Gain 6 Vdc maximum at 5 A CT current

Droop 0 to 10%

Speed Control Range switch selectable, 500–1500 Hz, 1000–3000 Hz,

2000–6000 Hz (standard), 4000–12 000 Hz

Operating Temperature –40 to +85 °C (–40 to +185 °F)

Load Sharing ±5% of rated load with speed setting matched

Vibration 4 Gs, 5 to 500 Hz

Shock 60 Gs

Weight approximately 1.8 kg (4 lb)

Finish gloss powder
