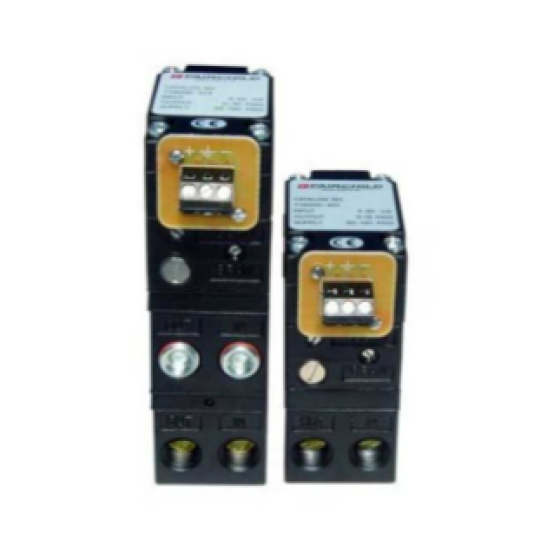

Fairchild Model T6000 Electro-Pneumatic Transducer, 1/4" FPT I/O Ports, 4-20 mA Input, 0-120 psig Output, 11 SCFM @ 150 PSIG Supply, Aluminum Body/Housing, Nitrile Diaphragm, Terminal Block, Field Reversible, Extended Range, Current to Pressure, Compact Size, RFI/EMI Protection.
Manufacturer: Fairchild Products
Accuracy: ± 0.75% Full Scale
Action Type: Field Reversible
Air Connection: 1/4 in. FNPT Threaded x 1/4 in. FNPT Threaded
Air Flow Rate: 11 SCFM @ 150 psig Supply
Body Material: Aluminum
Electrical Connection: Terminal Block
Flow Capacity: 11 SCFM (18.7 m³/hr) @ 150 psig
Input Signal: 4 to 20 mA
Input Type: Current
Mounting Method: DIN-Rail (Mount Kit Included), Surface Mount, Panel Mount (Kit Included), Wall Mount (Kit Included)
Output Type: Pressure
Product Type: Electro-Pneumatic Transducers
Temperature Range: -20°F to 150°F
Output: 0 to 120 psig
Mounting Hardware: Mount Kit 16893 (Included), (2) #10-32 TPI Screw, Mount Kit 16799-1 (Included)
