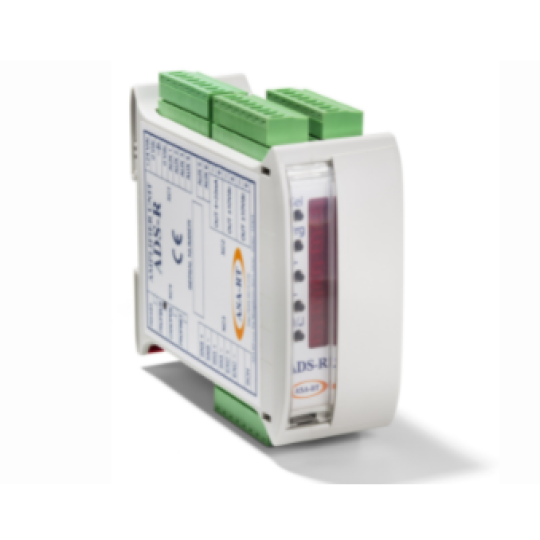

Bộ khuếch đại tín hiệu đo Measuring amplifier unit type ADS-R2 I ADS-R2/P I ADS-R2/C I ADS-R2/PN hãng ASA-RT Italy
- External power supply 24VDC / ± 10% - 5W
- Two interfaces for strain gauges bridge, each characterised by:
bridge supply 5 VDC.
30 mA per measuring channel (2 load cells 350 Ohm in parallel).
acquisition with 24 bit ADC converters with independent sense wires
Linearity 0,05% F.S. - thermal drift 0,001% F.S. / °C
n. 2 analog outputs ± 10 VDC, Ro > 2 KOhm.
n. 1 analog output 4..20 mA , Ro < 150 Ohm
n. 2 opto-isolated digital inputs 24 VDC (positive logic).
n. 2 opto-isolated digital outputs 24 VDC / 50 mA (positive logic).- Assembling on DIN guide step 50 mm.
- Optional Profinet I/O expansion card on RJ45 connectors, with integrated 2-ports switch.
- Optional Profibus DPv1 expansion card on DB9 connector
- Optional CANopen DS404 expansion card on DB9 connector
