Cảm biến đo tốc độ không khí/gió chủ động Senseca Delta Ohm HD2903T / HD29V3T – Active Air Speed Transmitters
Active air speed transmitters for ducts. Air speed, air speed and temperature, air speed, temperature and relative humidity. Analog output 4…20mA or 0…10VDC. Several Probes type lenghts available.
The family of transmitters series HD29… are employed in the control of air speed in the air conditioning and ventilation (HVAC / BEMS) in the pharmaceutical, museum, clean rooms, ventilation ducts, industrial sectors and households, crowded places, cafeterias, auditoriums, gymnasiums or on farms with large numbers of animals.
The sensors in combination with an accurate electronics guarantee precise and reliable measurements in the time.
The sensor for the air speed is thin film, the probe sheath is AISI304, the filter relative humidity of 20μ wire mesh, materials that allow the use in hostile areas.

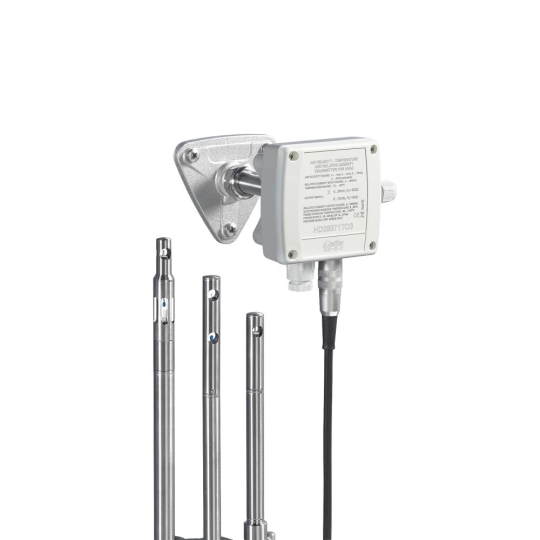

There are two possible installations: in the TO version, the horizontal probe is joined to the electronics enclosure while in the TC version the probe is conconnected to the electronics through a cable. In the TO version, the duct probe is fixed to the electronics enclosure and it is available in three different lengths. To fix the probe to the duct, you can use, for example, the HD9008.31 flange, a 3/8” universal biconical connection or a PG16 metal cable gland (∅10…14mm). In the TC version, the probe together with the sensors is equipped with a cable which can be 2, 5 or 10 meters long.
The probes are available in different lengths.
Possibilities of the several models:
– Air speed measurement with the HD2903T… and HD29V3T… series – analog output 4-20mA or 0-10VDC
– Air speed and Temperature measurement with the HD2937T… and HD29V37T… series – analog outputs 4-20mA or 0-10 Vdc
– Air speed, Humidity and Temperature measurement with the HD29371… series and HD29V371T – analog outputs 4-20mA or 0-10 Vdc
-
Delta Ohm HD2903T / HD29V3T
-
Liên hệ
-
38
- Thông tin sản phẩm
- Bình luận
Cảm biến đo tốc độ không khí/gió chủ động Senseca Delta Ohm HD2903T / HD29V3T – Active Air Speed Transmitters
Senseca Delta Ohm HD2817T.D0 Transmitter, indicator, data logger for temperature and humidity. Model without relay, power supply 90…240 Vac
Senseca Delta Ohm HD2817T.D0/24 Transmitter, indicator, data logger for temperature and humidity. Model without relay, power supply 24Vac/dc
Senseca Delta Ohm HD2817T.DR Transmitter, indicator, ON/OFF regulator, data logger for temperature and humidity. With 2 control relays and 1 alarm relay, power supply 90…240 Vac
Senseca Delta Ohm HD2817T.DR/24 Transmitter, indicator, ON/OFF regulator, data logger for temperature and humidity. With 2 control relays and 1 alarm relay, power supply 24Vac/dc
Senseca Delta Ohm HD2817TO.D0 Transmitter, indicator, data logger for temperature and humidity. Model without relay, power supply 90…240 Vac
Senseca Delta Ohm HD2817TO.D0/24 Transmitter, indicator, data logger for temperature and humidity. Model without relay, power supply 24Vac/dc
Senseca Delta Ohm HD2817TO.DR Transmitter, indicator, ON/OFF regulator, data logger for temperature and humidity. With 2 control relays and 1 alarm relay, power supply 90…240 Vac
Senseca Delta Ohm HD2817TO.DR/24 Transmitter, indicator, ON/OFF regulator, data logger for temperature and humidity. With 2 control relays and 1 alarm relay, power supply 24Vac/dc
Senseca Delta Ohm HD2903TC110 Active air speed transmitter for ducts, output 4…20mA.
Senseca Delta Ohm HD2903TC12 Active air speed transmitter for ducts, output 4…20mA.
Senseca Delta Ohm HD2903TC15 Active air speed transmitter for ducts, output 4…20mA.
Senseca Delta Ohm HD2903TC210 Active air speed transmitter for ducts, output 4…20mA.
Senseca Delta Ohm HD2903TC22 Active air speed transmitter for ducts, output 4…20mA.
Senseca Delta Ohm HD2903TC25 Active air speed transmitter for ducts, output 4…20mA.
Senseca Delta Ohm HD2903TC310 Active air speed transmitter for ducts, output 4…20mA.
Senseca Delta Ohm HD2903TC32 Active air speed transmitter for ducts, output 4…20mA.
Senseca Delta Ohm HD2903TC35 Active air speed transmitter for ducts, output 4…20mA.
Senseca Delta Ohm HD2903TO1 Active air speed transmitter for ducts, output 4…20mA.
Senseca Delta Ohm HD2903TO2 Active air speed transmitter for ducts, output 4…20mA.
Senseca Delta Ohm HD2903TO3 Active air speed transmitter for ducts, output 4…20mA.
Senseca Delta Ohm HD29371TC110 Active transmitter for duct air speed, temperature and relative humidity, output 4…20mA.
Senseca Delta Ohm HD29371TC12 Active transmitter for duct air speed, temperature and relative humidity, output 4…20mA.
Senseca Delta Ohm HD29371TC15 Active transmitter for duct air speed, temperature and relative humidity, output 4…20mA.
Senseca Delta Ohm HD29371TC210 Active transmitter for duct air speed, temperature and relative humidity, output 4…20mA.
Senseca Delta Ohm HD29371TC22 Active transmitter for duct air speed, temperature and relative humidity, output 4…20mA.
Senseca Delta Ohm HD29371TC25 Active transmitter for duct air speed, temperature and relative humidity, output 4…20mA.
Senseca Delta Ohm HD29371TC310 Active transmitter for duct air speed, temperature and relative humidity, output 4…20mA.
Senseca Delta Ohm HD29371TC32 Active transmitter for duct air speed, temperature and relative humidity, output 4…20mA.
Senseca Delta Ohm HD29371TC35 Active transmitter for duct air speed, temperature and relative humidity, output 4…20mA.
Senseca Delta Ohm HD29371TO1 Active transmitter for duct air speed, temperature and relative humidity, output 4…20mA.
Senseca Delta Ohm HD29371TO2 Active transmitter for duct air speed, temperature and relative humidity, output 4…20mA.
Senseca Delta Ohm HD29371TO3 Active transmitter for duct air speed, temperature and relative humidity, output 4…20mA.
Senseca Delta Ohm HD2937TC110 Active transmitter for duct air speed and temperature, output 4…20mA.
Senseca Delta Ohm HD2937TC12 Active transmitter for duct air speed and temperature, output 4…20mA.
Senseca Delta Ohm HD2937TC15 Active transmitter for duct air speed and temperature, output 4…20mA.
Senseca Delta Ohm HD2937TC210 Active transmitter for duct air speed and temperature, output 4…20mA.
Senseca Delta Ohm HD2937TC22 Active transmitter for duct air speed and temperature, output 4…20mA.
Senseca Delta Ohm HD2937TC25 Active transmitter for duct air speed and temperature, output 4…20mA.
Senseca Delta Ohm HD2937TC310 Active transmitter for duct air speed and temperature, output 4…20mA.
Senseca Delta Ohm HD2937TC32 Active transmitter for duct air speed and temperature, output 4…20mA.
Senseca Delta Ohm HD2937TC35 Active transmitter for duct air speed and temperature, output 4…20mA.
Senseca Delta Ohm HD2937TO1 Active transmitter for duct air speed and temperature, output 4…20mA.
Senseca Delta Ohm HD2937TO2 Active transmitter for duct air speed and temperature, output 4…20mA.
Senseca Delta Ohm HD2937TO3 Active transmitter for duct air speed and temperature, output 4…20mA.
Senseca Delta Ohm HD29V371TC110 Active transmitter for duct air speed, temperature and relative humidity, output 0…10Vdc.
Senseca Delta Ohm HD29V371TC12 Active transmitter for duct air speed, temperature and relative humidity, output 0…10Vdc.
Senseca Delta Ohm HD29V371TC15 Active transmitter for duct air speed, temperature and relative humidity, output 0…10Vdc.
Senseca Delta Ohm HD29V371TC210 Active transmitter for duct air speed, temperature and relative humidity, output 0…10Vdc.
Senseca Delta Ohm HD29V371TC22 Active transmitter for duct air speed, temperature and relative humidity, output 0…10Vdc.
Senseca Delta Ohm HD29V371TC25 Active transmitter for duct air speed, temperature and relative humidity, output 0…10Vdc.
Senseca Delta Ohm HD29V371TC310 Active transmitter for duct air speed, temperature and relative humidity, output 0…10Vdc.
Senseca Delta Ohm HD29V371TC32 Active transmitter for duct air speed, temperature and relative humidity, output 0…10Vdc.
Senseca Delta Ohm HD29V371TC35 Active transmitter for duct air speed, temperature and relative humidity, output 0…10Vdc.
Senseca Delta Ohm HD29V371TO1 Active transmitter for duct air speed, temperature and relative humidity, output 0…10Vdc.
Senseca Delta Ohm HD29V371TO2 Active transmitter for duct air speed, temperature and relative humidity, output 0…10Vdc.
Senseca Delta Ohm HD29V371TO3 Active transmitter for duct air speed, temperature and relative humidity, output 0…10Vdc.
Senseca Delta Ohm HD29V37TC110 Active transmitter for duct air speed and temperature, output 0…10Vdc.
Senseca Delta Ohm HD29V37TC12 Active transmitter for duct air speed and temperature, output 0…10Vdc.
Senseca Delta Ohm HD29V37TC15 Active transmitter for duct air speed and temperature, output 0…10Vdc.
Senseca Delta Ohm HD29V37TC210 Active transmitter for duct air speed and temperature, output 0…10Vdc.
Senseca Delta Ohm HD29V37TC22 Active transmitter for duct air speed and temperature, output 0…10Vdc.
Senseca Delta Ohm HD29V37TC25 Active transmitter for duct air speed and temperature, output 0…10Vdc.
Senseca Delta Ohm HD29V37TC310 Active transmitter for duct air speed and temperature, output 0…10Vdc.
Senseca Delta Ohm HD29V37TC32 Active transmitter for duct air speed and temperature, output 0…10Vdc.
Senseca Delta Ohm HD29V37TC35 Active transmitter for duct air speed and temperature, output 0…10Vdc.
Senseca Delta Ohm HD29V37TO1 Active transmitter for duct air speed and temperature, output 0…10Vdc.
Senseca Delta Ohm HD29V37TO2 Active transmitter for duct air speed and temperature, output 0…10Vdc.
Senseca Delta Ohm HD29V37TO3 Active transmitter for duct air speed and temperature, output 0…10Vdc.
Senseca Delta Ohm HD29V3TC110 Active air speed transmitter for ducts, output 0...10Vdc.
Senseca Delta Ohm HD29V3TC12 Active air speed transmitter for ducts, output 0...10Vdc.
Senseca Delta Ohm HD29V3TC15 Active air speed transmitter for ducts, output 0...10Vdc.
Senseca Delta Ohm HD29V3TC210 Active air speed transmitter for ducts, output 0...10Vdc.
Senseca Delta Ohm HD29V3TC22 Active air speed transmitter for ducts, output 0...10Vdc.
Senseca Delta Ohm HD29V3TC25 Active air speed transmitter for ducts, output 0...10Vdc.
Senseca Delta Ohm HD29V3TC310 Active air speed transmitter for ducts, output 0...10Vdc.
Senseca Delta Ohm HD29V3TC32 Active air speed transmitter for ducts, output 0...10Vdc.
Senseca Delta Ohm HD29V3TC35 Active air speed transmitter for ducts, output 0...10Vdc.
Senseca Delta Ohm HD29V3TO1 Active air speed transmitter for ducts, output 0...10Vdc.
Senseca Delta Ohm HD29V3TO2 Active air speed transmitter for ducts, output 0...10Vdc.
Senseca Delta Ohm HD29V3TO3 Active air speed transmitter for ducts, output 0...10Vdc.
