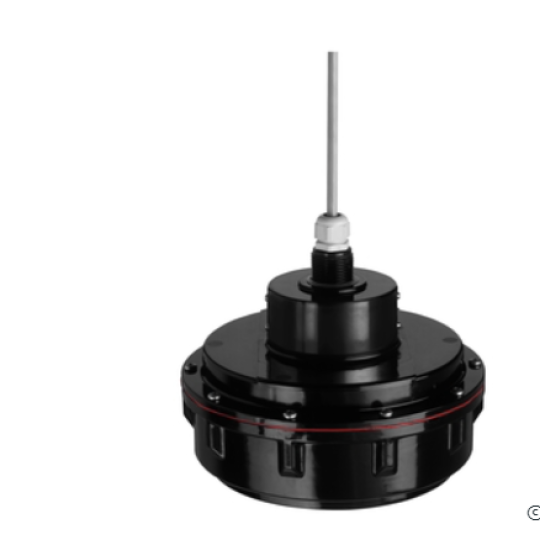

FDU95-P1N2A

Prosonic S FDU95

Level, ultrasonic, contactless.

Sensor for connection to FMU90/FMU95.

Application: solids.

Membrane: 316L.

Enclosure: UP.

Measuring range: 45m/150ft (solid).

Max 1.5bar/22psi abs.

Protection class IP68 NEMA6P.

:: High availability:

Self cleaning effect of sensor membrane

Order code description

P Approval: FM Cl.II Div.1 Gr.E-G, zone 2,21,22

1 Temperature; Blocking Distance;Material:

-40...+80oC/176oF; 70cm/2.3ft; membrane 316L, PE

coated

N Process Connection: Thread ANSI NPT1, UP

2 Cable Length: 10m/32ft

A Additional Option: Basic version
