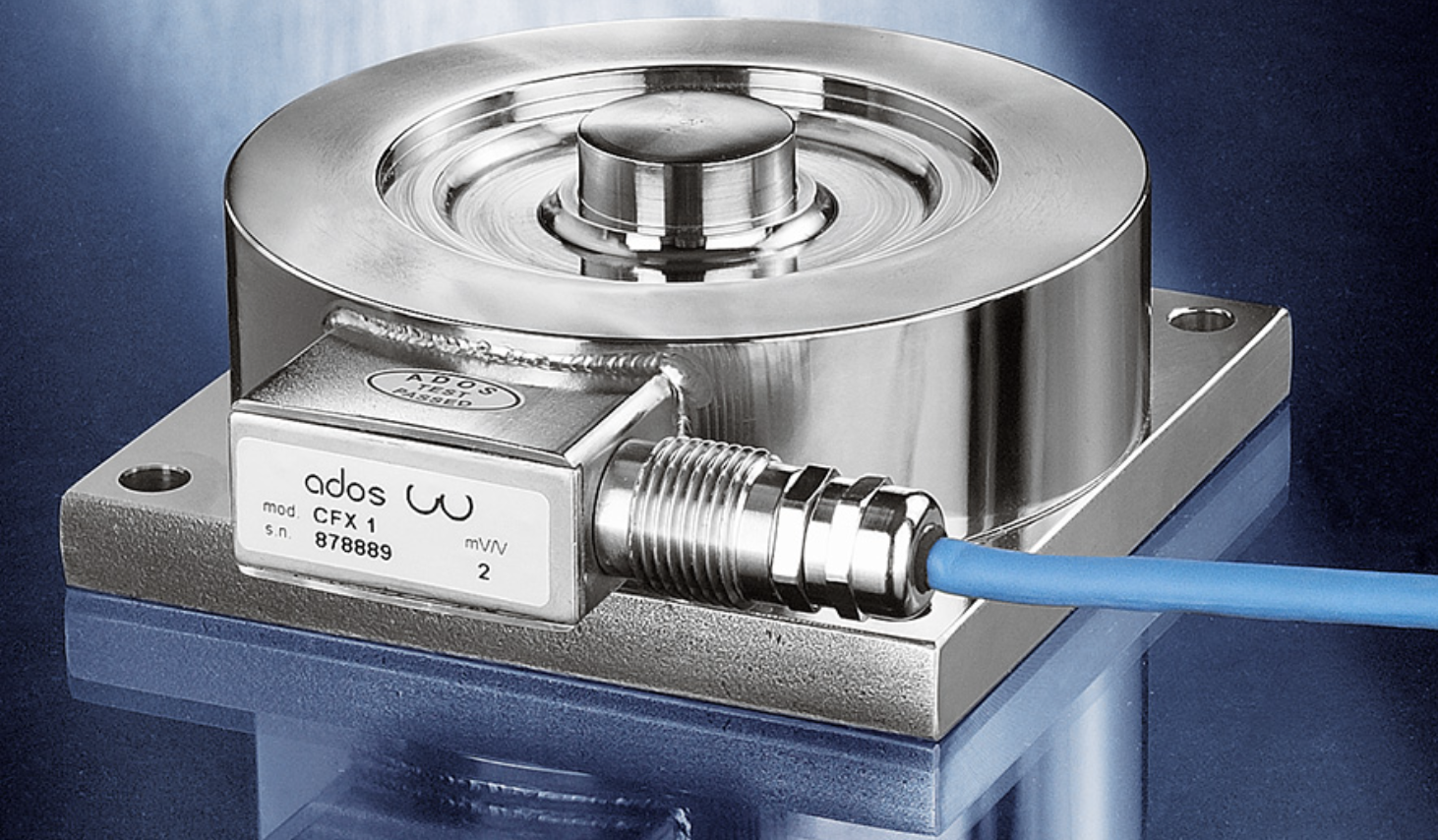

CFX CRX model load cells ADOS, CFX 100, CFX 250, CFX 500, CFX 1, CRX 2.5, CRX 5, CRX 10, CRX 20, ADOS
01. Features
Stainless steel AISI 630 (17-4-PH)
Hermetically welded seal (IP67)
Low profile
Spherical loading button for optimum alignment of load
Top plate and base plate included
Double strain gauge bridge available (redundant circuit)
Simple installation
Individual test report
SLF20/SLX20 mounting assembly available (optional)
EX version for hazardous area available (optional)
Capacity (kg)
| CFX 100 | 100 |
| CFX 250 | 250 |
| CFX 500 | 500 |
| CFX 1 | 1000 |
| CRX 2.5 | 2500 |
| CRX 5 | 5000 |
| CRX 10 | 10000 |
| CRX 20 | 20000 |
