S305 DEW POINT MONITOR FOR COMPRESSED AIR AND GASES (-20 … +50 °C TD / -50 … +20 °C TD)

Refrigeration dryers are among the dryers in compressed air treatment most commonly used. If the required drying is not achieved, the impact of wet air can be serious: Rust in the pipes, failures of machines , and a negative impact on product quality. SUTO offers with the S305 a measuring device for dew point monitoring that kicks in alarm indications when drying values are not within the desired range.

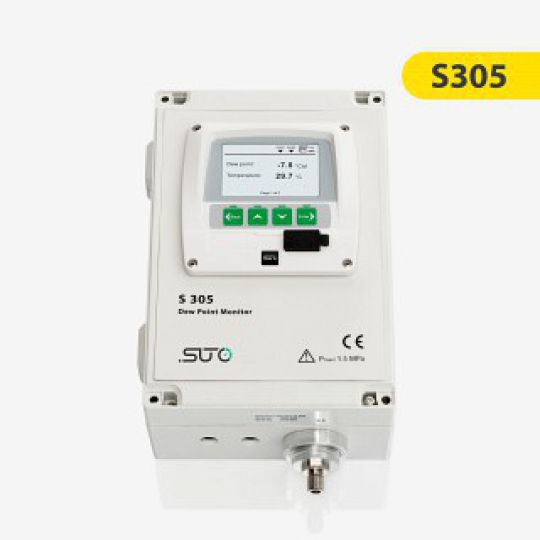

The All-In-One dew point monitor serves as a measuring and display device. The connection to the compressed air network is via a 6 mm quick-connector and corresponding connecting hose. The entire measuring unit is integrated together with the display in a rugged housing (IP 65) and is available both as a panel variant or as a wall-mounted housing. Two alarm levels can be programmed (pre and main alarm), serving an optical indications or separate relay outputs. The dew point meter allows a simple and inexpensive dew point monitoring.

FEATURES

• Measures down to –50 °C Td or -20 °C Td (two models available)
• Plug & Play
• Compressed air supply through 6 mm quick-connector
• Power supply: 100 … 240 VAC or 24 VDC
• Wall or panel mountable
• Accuracy of ±2°C Td
• IP65 casing provides robust protection in rough industrial environment
• 4 … 20 mA output to PLC or SCADA system
• Pre– and Main-Alarm programmable: Optical (red blinking display), 2 relay outputs
