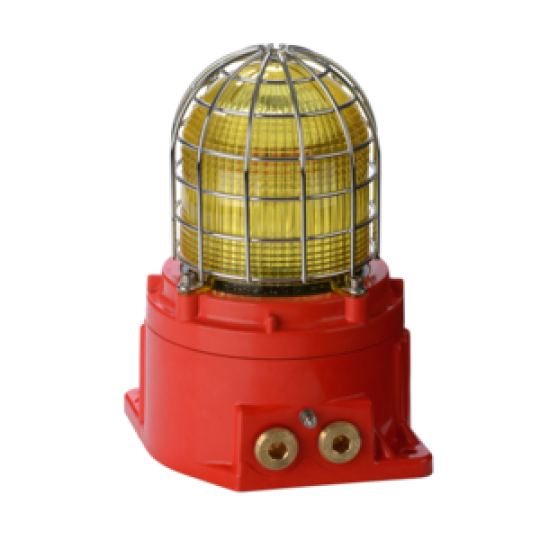

Đèn cảnh báo E2S GNExB2X21AC230BS2A1R/C E2S GNExB2X21 Xenon Strobe Beacon

The GNExB2X21 is an IECEx & ATEX approved explosion proof 21 Joule Xenon beacon. The robust corrosion proof GRP enclosure and extended temperature range ensures suitability for all Zone 1, 2, 21 & 22 hazardous location applications.

Mã sản phẩm:
Giá:
Liên hệ
Lượt xem:
21

Thông tin sản phẩm
Bình luận

Đèn cảnh báo E2S GNExB2X21AC230BS2A1R/C E2S GNExB2X21 Xenon Strobe Beacon

Description

The GNExB2X21 beacon produces over 900cd effective – a very high output Xenon strobe flash as required for efficient signalling in environments with elevated levels of ambient light. The optically enhanced field replaceable colour filter optimises the strobe output and is constructed from UV stable PC. The GRP enclosure features a threaded flame path, triple cable entries and a large termination area – all of which significantly reduce installation time. SIL1 & SIL2 Route 2H compliant to IEC61508 (2010) as standard.

Part Codes

Part Code:	Identifier:	Description:
Product type:	GNExB2
Type:	X21	Xenon Beacon – 21 Joule
Voltage:	DC024 DC048 AC115 AC230	24Vdc (20-28Vdc) 48Vdc (42-54Vdc) 115Vac (110-120Vac) 230Vac (220-240Vac)
Cable entries: [e]	A B C D E F G H I J	3 x M20x1.5mm 2 × 1/2" NPT – adaptors 2 × 3/4" NPT – adaptors 2 x M25x1.5mm – adaptors 1 × 1/2" NPT – adaptor 1 × 3/4" NPT – adaptor 1 x M25x1.5mm – adaptor 3 × 1/2" NPT – adaptors 3 × 3/4" NPT – adaptors 3 x M25x1.5mm – adaptors
Stopping plug/ adaptor material: [m]	B N S	Brass Nickel plated brass Stainless steel
Guard material: [s]	1 3 5	A4 316 Stainless Steel A4 316 St/St with Equip. Tag A4 316 St/St with Equip. Tag and Duty Label
Product version: [v]	A U	IECEx, ATEX, Ex EAC, PESO, INMETRO SIL1 & SIL2 Dual Xenon Tubes – IECEx, ATEX, Ex EAC PESO, INMETRO – SIL1 & SIL2
Product option: [o]	1 X	Standard product Custom configuration – contact E2S
Enclosure colour: [x]	R S	Red Special colour – contact E2S
Lens colour: [y]	A B C G M R Y	Amber Blue Clear Green Magenta Red Yellow
Accessories: SP65-0001-A4 SP65-0003-A4	Pole Mount Bracket Kit St/St A4 (316) Sunshade – St/St A4 (316)
