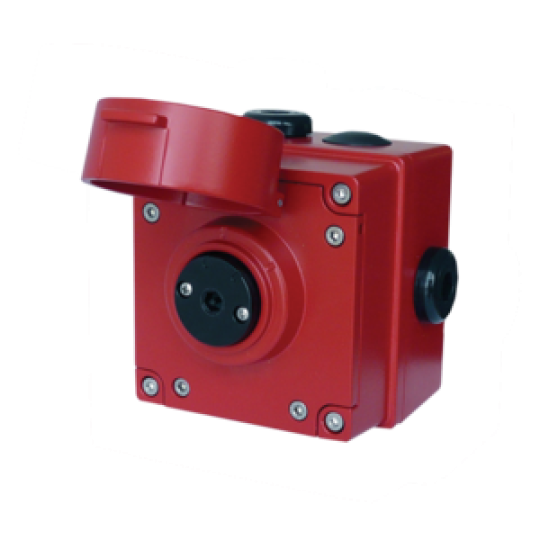

Điểm gọi thủ công E2S BEXCP3CPT BExCP3-PT Push Button Tool Reset Call Point Model: BExCP3CPTSSLAN1A1RN24ExxxRSxxxR

0944911836 Ms. Duyên 0972835740 Ms. Hà 0385097045 Mr. Hiếu 0392468875 Ms. Anh 0707602728 Ms. Vân
Điểm gọi thủ công E2S BEXCP3CPT BExCP3-PT Push Button Tool Reset Call Point Model: BExCP3CPTSSLAN1A1RN24ExxxRSxxxR

Điểm gọi thủ công E2S BEXCP3CPT BExCP3-PT Push Button Tool Reset Call Point Model: BExCP3CPTSSLAN1A1RN24ExxxRSxxxR

BEXCP3[A/B/C]-PT Push Button MCP

Latching - tool reset

Switch type: SPCO

Standard Terminal (6 x 4.0mm)

Push button lift flap

Entries: 3 x M20 [Default]

Stopping plug: Nylon

No Duty label, no Equip. tag

Product version: IECEx, ATEX, Ex EAC, INMETRO, PESO, SIL2

Product option: Standard

Enclosure colour: Red

Default = N - not currently used

System voltage: 24Vdc

  • Liên hệ
  • 29
  • Thông tin sản phẩm
  • Bình luận

Điểm gọi thủ công E2S BEXCP3CPT BExCP3-PT Push Button Tool Reset Call Point

Description
The BEx range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium with a chromated and powder coat finish. Available with and without monitoring resistors all versions are certified to IECEx and ATEX standards with additional PESO, INMETRO and Ex EAC approvals. The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation. The BExCP3-PT is user re-settable via the use of the special key supplied with the unit.
