Features

• Glass reinforced polyester enclosure – light, strong and not subject to corrosion.

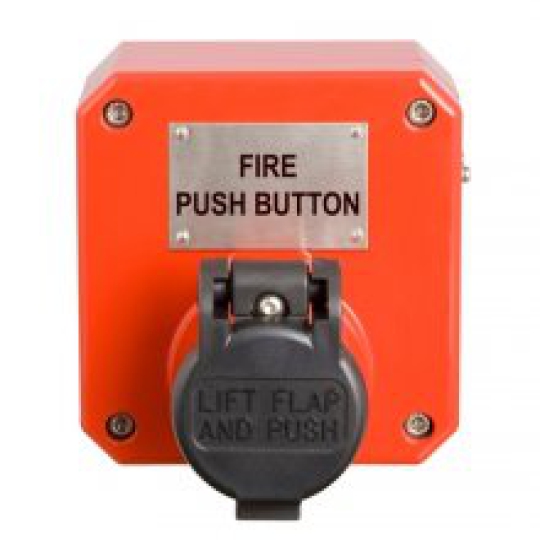

• The unit is now supplied with a lift flap that latches firmly in place.
• 4 basic versions available
• (1) Explosion protected Exe (ATEX, IECEx, TR CU, Chinese CQST, INMETRO)
• (2) Explosion protected Exi (ATEX, IECEx, TR CU, CQST, CSA)
• (3) Weatherproof & Dust-tight/UL ordinary locations.
• (4) Explosion protected:
• Class I, Div. 2,
• Groups A-D
• Class II, Div. 2,
• Groups F & G
• Class I, Zone 2
• SIL2 certified
• DNV certified
• CCC
• In line and end of line resistors and/or zener diodes can be fitted.
• Variety of colours available.
• Up to 9 terminals available.
• Optional LED – this indicates that the unit has been operated – useful for testing purposes.
• Earth continuity option for metal glands.
• 1 or 2 changeover switches.
• Captive cover screws.
