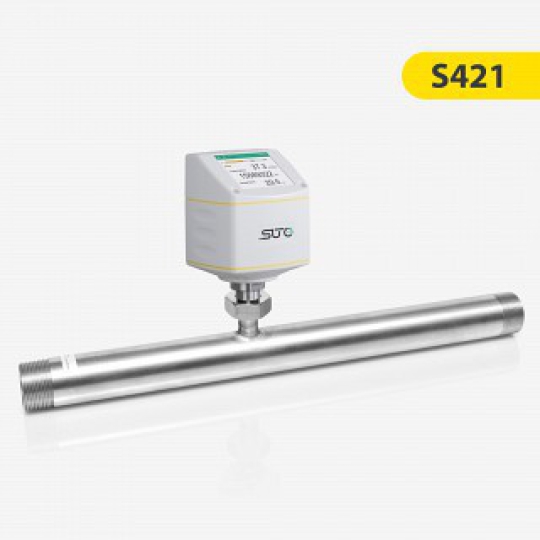

Thiết bị lưu lượng khí nén dạng In-Line thương hiệu SUTO-iTEC model S421

The S421 compressed air flow and consumption meter covers a wide measuring range. With the high resolution and sampling rate a very fast and precise measurement is achieved. The installation is done through the selected measuring section, with R-thread or with flange connection. The sensors is able to save two calibration curves, due to this the sensor can be used in two different gases without any loss of accuracy, for example the compressed air flow can be measured but a the same time it can be used in Nitrogen. The optional color display is designed to show all measured values like flow and total consumption. At the same time the display can be used to manage the sensor settings like pipe diameter, gas type or analog output scaling. The sensor offers two different signal output options. It can have a isolated analog and pulse output to read out the flow and the total consumption. Alternatively a MODBUS RTU interface can be used to access all measured values via the digital interface. Various settings such as gas type, flow unit, reference standards, can be set ex factory according to your needs. If its needed to change the settings on site, then you can use the our free S4C-FS mobile phone application for android phones. This enables you to change the settings wirelessly on site, within a touch of your smartphone. Managing your compressed air was never easier. The S421 is the perfect meter to monitor your compressed air system and measure the compressed air flow and consumption. Features Easy and affordable sensor solution to measure the compressed air flow and consumption Sensor is calibrated in the measuring section, this allows a very high precsision
