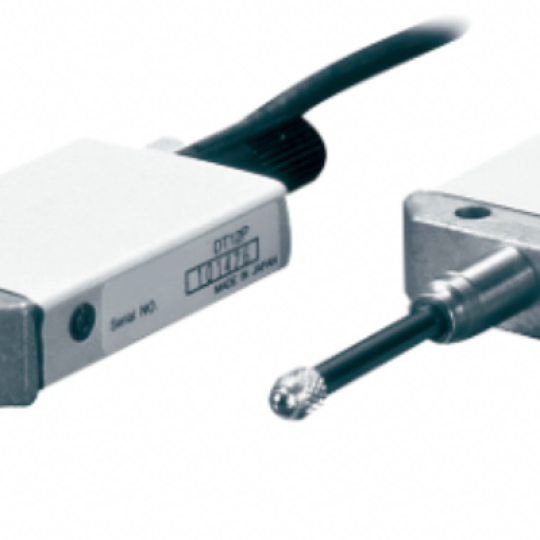

Máy đo kỹ thuật số Digital Gauge DT Series Magnescale
A general-purpose model that supports a wide range of applications from judgmental use such as assembly verification to dimensional measurement.
It can be used for a wide range of applications while keeping costs low.
Excellent resistance to workshop conditions : Equivalent to IP64 (P type)
Measuring range : 12 mm, 32 mm
Maximum resolution : 1 µm, 5 µm
Accuracy : 6 µm p-p, 10 µm p-p (Depends on the measurement length and resolution.)
Resistant to oil, water, dust, vibration, and shock.
Supports Φ8 mm stem mounting and side mounting with M4 screws
Tough against oil and dust
Pneumatic push type is also available, in which the spindle is driven by air supply.
-
Liên hệ
-
993
- Thông tin sản phẩm
- Bình luận
| Specifications | |||||
|---|---|---|---|---|---|
|
*1 The mass indicated is the total mass excluding the cable. Magnescale reserves the right to change product specifications without prior notice. |
|||||
| Model | DT12N | DT12P | |||
| Spindle driving | Spring push (Pneumatic push is possible with accessory DZ176) | ||||
| Measuring range | 12 mm | ||||
| Maximum resolution | 5 µm | ||||
| Measuring force (at 20 °C) | Upward | 0.7 ±0.5 N | 1.7 N or less | ||
| Horizontal | 0.8 ±0.5 N | 1.7 N or less | |||
| Downward | 0.9 ±0.5 N | 1.7 N or less | |||
| Accuracy (at 20 °C) | 10 µm p-p | ||||
| Operating temperature | 0 to +50 °C | ||||
| Storage temperature | −10 to +60 °C | ||||
| Output cable length | 2 m | ||||
| Stem diameter | Φ8 0‒0.015mm | ||||
| Feeler | Steel ball tip, Φ3 mm, M2.5p x0.45 screw | ||||
| Mass*1 | Approx. 75 g | Approx. 80 g | |||
| Protection grade | – | Equivalent to IP64 | |||
| Specifications | |||||
|---|---|---|---|---|---|
|
*1 The mass indicated is the total mass excluding the cable. *2 The measuring force is the value when the spigot is open at an input air pressure of 1.96×105 Pa. *3 The measurement force is the value when the spigot is open at an input air pressure of 2.35×105 Pa. Magnescale reserves the right to change product specifications without prior notice. |
|||||
| Model | DT32N | DT32NV | DT32P | DT32PV | |
| Spindle driving | Spring push | Pneumatic push | Spring push | Pneumatic push | |
| Measuring range | 32 mm | ||||
| Maximum resolution | 5 µm | ||||
| Measuring force (at 20 °C) | Upward | 1.1 ±0.8 N *2 | 2.9 N or less | 9 N or less *3 | |
| Horizontal | 1.3 ±0.8 N *2 | 2.9 N or less | 9 N or less *3 | ||
| Downward | 1.5 ±0.8 N *2 | 2.9 N or less | 9 N or less *3 | ||
| Accuracy (at 20 °C) | 10 µm | ||||
| Operating temperature | 0 to +50 °C | ||||
| Storage temperature | −10 to +60 °C | ||||
| Output cable length | 2 m | ||||
| Stem diameter | Φ8 0‒0.015mm | ||||
| Feeler | Steel ball tip, Φ3 mm, M2.5p x0.45 screw | ||||
| Mass*1 | Approx. 120 g | Approx. 140 g | Approx. 120 g | Approx. 140 g | |
| Protection grade | – | – | Equivalent to IP64 | Equivalent to IP64 | |
| Specifications | |||||
|---|---|---|---|---|---|
|
*1 When MT20 is connected Magnescale reserves the right to change product specifications without prior notice. |
|||||
| Model | DT512N | DT512N-T10 | DT512P | DT512P-T10 | |
| Spindle driving | Spring push (Pneumatic push is possible with accessory DZ176) | ||||
| Measuring range | 12 mm | ||||
| Maximum resolution | 1 µm | ||||
| Measuring force (at 20 °C) | Upward | 0.7 ±0.5 N | 1.7 N or less | ||
| Horizontal | 0.8 ±0.5 N | 1.7 N or less | |||
| Downward | 0.9 ±0.5 N | 1.7 N or less | |||
| ccuracy (at 20 °C) | 6 µm p-p | 3 µm p-p *1 | 6 µm p-p | 3 µm p-p *1 | |
| Operating temperature | 0 to +50 °C | ||||
| Storage temperature | −10 to +60 °C | ||||
| Output cable length | 2 m | ||||
| Stem diameter | Φ8 0‒0.015mm | ||||
| Feeler | Steel ball tip, Φ3 mm, M2.5p x0.45 screw | ||||
| Mass *2 | Approx. 75 g | Approx. 80 g | |||
| Protection grade | ― | Equivalent to IP64 | |||
Dimensions
| Product name | 2D | 3D | |
|---|---|---|---|
| DT12 | N | Download | － |
| DT12 | P | Download | － |
| DT32 | N | Download | － |
| DT32 | NV | Download | － |
| DT32 | P | Download | － |
| DT32 | PV | Download | － |
| DT512 | N | Download | ― |
| DT512 | P | Download | ― |
Manual
| Product name | Japanese | English | Deutsch | Simplified Chinese |
|---|---|---|---|---|
| DT12 / DT512 | Download | Download | Download | Download |
| DT32 | Download | Download | Download | － |
Accessory
DT12/32/512
Feeler
| DZ-100 |  |
Roller feeler |
| DZ-123 |  |
Φ3 mm carbide ball tip feeler |
| DZ-191 |  |
Coupling feeler |
| DZ-5100 |  |
Feeler set (pin, off-center, carbide flat, plastic spherical) |
Lift lever
| DZ-161 |  |
Lift lever (To allow manual sliding, this is mounted between the spindle and the feeler.) |
Air lifter
| DZ176 |  |
Air lifter for DT12/512 |
Gauge stand
| DZ-521 |  |
Stand for gauge, mounting hole Φ8 |
Extension cable
| CE08-1, 3, 5, 10, 15 | Extension cable for LT series / MG series (1, 3, 5, 10, 15 m) | |
| CK-T12, 13, 14, 15, 16 | Flex-resistant extension cable for LT series / MG series (1, 3, 5, 10, 15 m) | |
Interpolator
| MT13-01, 05, 10 | A/B quadrature, voltage-differential line driver output (resolution 1, 5, 10 µm) | |
| MT14-01, 05, 10 | A/B quadrature, voltage-differential line driver output, bare wires (resolution 1, 5, 10 µm) | |
| MT20-01, 05 | For MF10 (resolution 1, 5 µm) | |
| MT30-01, 05 | For USB output (resolution 1, 5 µm) | |
