Measuring unit for lengths Metre / Millimetre

Instrument generation plics®plus

Approval directive / Scope ATEX / Europe

Approval RX ATEX II 1D, 1/2D, 2D Ex t IIIC T* Da, Da/Db, Db

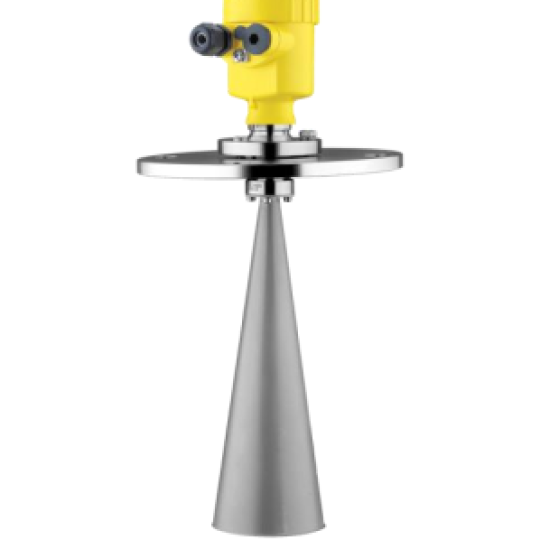

Version / Material E with horn antenna (ø95mm) / 316L

Process fitting / Material 1Q Swivelling holder with flange DN100 PN16 /

316/316L

Seal / Process temperature 2 FKM (SHS FPM 70C3 GLT) and PTFE / -

40...+130°C

Electronics H Two-wire 4 ... 20 mA/HART

Overvoltage protection of the supply cable without

Address setting No

Housing / Protection A Aluminium single chamber / IP66/IP68 (0.2 bar)

Cable entry / Cable gland / Plug connection M M20x1.5 / with / without

Display/adjustment module PLICSCOM A mounted

Additional equipment V Rinsing connection with reflux valve

Measuring range 30 m

Application area

The VEGAPULS SR 68 is a radar sensor for continuous measurement of bulk solids even under difficult process conditions. It is particularly suitable for level measurement in high silos and large bunkers. The VEGAPULS SR 68 is an economical solution thanks to the simple setup and the reliable, maintenance-free operation.

Your benefit

- Maintenance-free operation through non-contact measuring principle

- High plant availability, because wear and maintenance-free

- Reliable measurement independent of vapour, dust and noise
