ST-4S-D-1-B-3-A-2-B-3

Number of Point : 4 Point

Number of Float : 4EA

Type of Wire Connection: Multi-Wire

Wet Parts Material : 316SS

Measuring Length : 3000mm

(L1:? L2:? L3:?L4:?)

Mounting Size: JIS 10K 80A 6t FF Flange

Operating Temperature: -10 ~ +100C

Enclosure: Weather Proof (ADC-12)

Conduit Connection: PF 1/2”

ST-4S-D-1-A-1-A-1-B-3

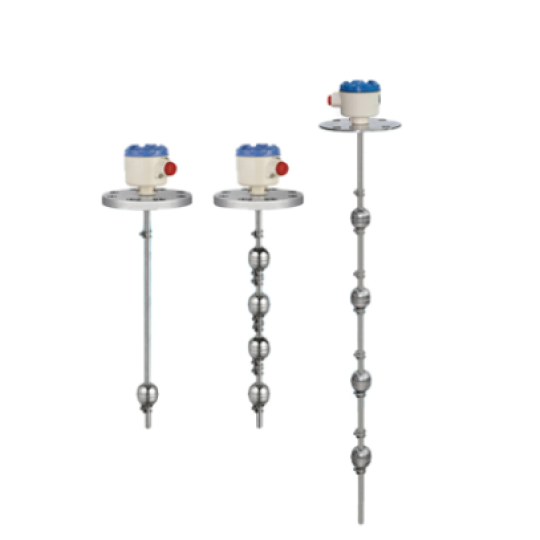

Reed Float Type Level Switch

Number Of Point : 4 Point

Number Of Float : 4EA (Min. length 330mm)

Type Of Wire Connection : Multi-Wire (Std.)

Wet Parts Meterial : 304 SS(Std.)

Measuring Length(Pipe Totla Length) : 1000mm

Mounting Size : JIS 10K 80A 6t FF Flange(Std.)

Operating Temperature : -10 ~ +60℃(Std.)

Enclosure : Weather Proof (ADC-12)

Conduit Connection : PF 1/2" (Ex-ADC-Std.)
