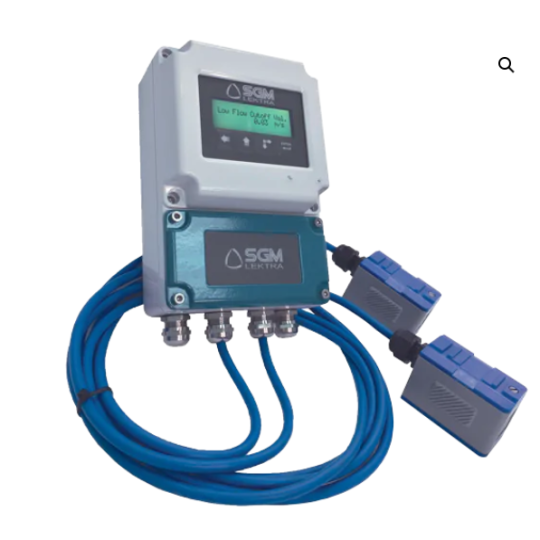

The SGM-101F flowmeters operate on the ultrasonic pulses transit time difference principle. The great advantage is the mechanical installation, because it is not necessary to cut the pipe. The sensors are simply clamped on the outer pipe surface, for this reason the pressure and the liquid aggressiveness to be measured are not a problem for the fl owmeter. The system measures in a bidirectional way and is suitable for clean or slightly dirty liquids.

Pipe dimension range

DN20 ÷ DN4000

Transmitter protection class

IP66

Transducer protection class

IP68

Display

backlighted 2×20 alphanumeric digit

Keypad

4 keys

Housing material

aluminium

Displayed data

instantaneous flowrate; flow totalizer

Installation

wall mounting

Analog Output

Sel. 4÷20mA o 0÷20mA

Accuracy

±1%

Repeatability

±0,2%

Linearity

±0,5%

Basic measurement period

500ms

Serial port

RS485

Communication protocol

MODBUS RTU or ASCII+ (opz.)

Data logger

on SD card (opt.) or via MODBUS

Programmable frequency output

0÷5000Hz

Relay output

n.1 for pulse totalizer or alarm

Medium speed range

±12m/s

Unit working temperature

-20÷60°C

Instrument humidity

non condensing 85% RH (40°C)

Transducer working temperature

TS-2 / TM-1 / TL-1 -30 ÷ +90°C;
TS2H / TM1H -30 ÷ +160°C;
TC-1/ TLC2 -40 ÷ +160°C

PT100 sensors working temperature

-40°C +160°C

Transducer cable std. length

5mt

PT100 sensor cable std. length

15mt

Power Supply

230Vac o 10÷30Vdc (depending on model)

Dimensions

200x120x77mm

Weight without sensors

1Kg
