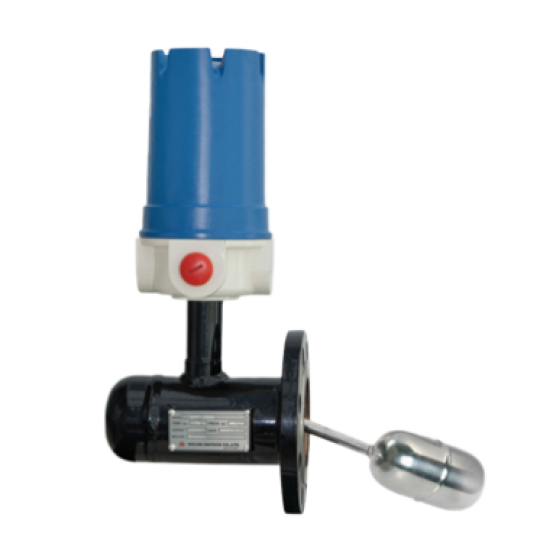

Product Name Vertical Magnetic Float Type Level Switch

Model SHM-2000 Series

Series Level Switch

MODEL: SJ-M012-DWG-AP001, SJ-M012-DWG-AP002, SJ-M012-DWG-AP003, SJ-M012-DWG-AP004, SJ-M012-DWG-AP005, SJ-M012-DWG-AP006, SJ-M012-DWG-AP007
  • Liên hệ
  • 945
  • Thông tin sản phẩm
  • Bình luận
TYPE & MODEL Vertical Magnetic Float Type Level Switch
PRINCIPLE The range of linear core movement is determined by selecting the rotating angle of the float and lengths, L1 and L2, to actuate the micro-switch, which controls the power to pump or drain equipment
RANGE TEMPERATURE PRESSURE
  • Standard : 188mm
  • Standard : -25℃∼150℃
  • Optional : -25℃∼350℃
  • Max 100㎏/㎠
FEATURES OUTPUT APPLICATION
  • Liquid level control for high temperature and/or high pressure systems.(350℃ 100 bar)
  • For control of levels in turbine service tanks of electric power plants.
  • For control of boiler feed-water and other pressure vessels.
  • For control of levels in oil tanks and petrochemical processing plants.
  • A variety of mounting chambers are available.
  • Simple installation.
  • Selectable of installation chambers.
  • Standard : 1 SPDT
  • Optional : 1 DPDT
  • Contact capacity : 5A 250V AC
  • High temperature/pressure tank
  • Sewage processing plant/water purification plant
  • Chemical tank
  • Fuel and oil tank
  • Beverage tank
INDUSTRY Nuclear/Power Generation Plant

MODEL: SJ-M012-DWG-AP001, SJ-M012-DWG-AP002, SJ-M012-DWG-AP003, SJ-M012-DWG-AP004, SJ-M012-DWG-AP005, SJ-M012-DWG-AP006, SJ-M012-DWG-AP007
