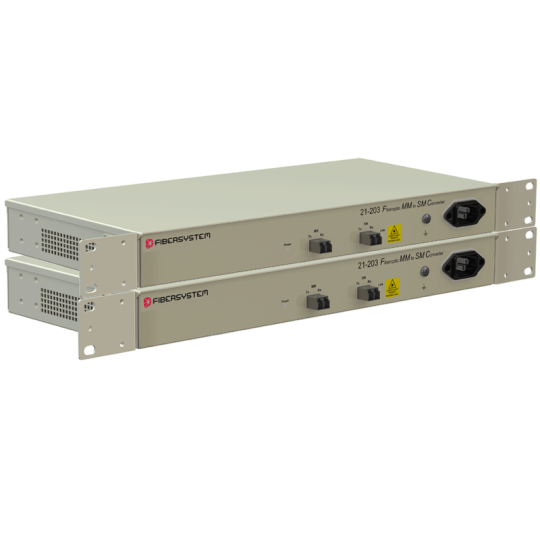

Bộ chuyển đổi quang điện FIBERSYSTEM (SWEDEN) Part No 21-203 Fiber optic IEEE C37.94 M M /SM Converter

Bộ chuyển đổi quang điện FIBERSYSTEM (SWEDEN) Part No 21-203 Fiber optic IEEE C37.94 M M /SM Converter

The 21-203 MM/SM converter is intended to extend optical reach for any low speed optical data signal into the long haul distances.

Using a 21-203 the optical short reach signals can be sent without the need for additional and expensive communication systems normally found in long haul communications.

When combined with the other products in Fibersystems teleprotection communication product line this converter allows for a very cost effective solution.

The 21-203 is particularly useful in differential line protection setups where dedicated fiber is available thus eliminating the need for multiplexers for the teleprotection traffic.

The 21-203 is compatible with the standards based IEEE C37.94 optical interface for teleprotection equipment and its protocol independence makes ideal for interoperation with any teleprotection equipment suppliers products
  • FIBERSYSTEM Part No 21-203
  • Liên hệ
  • 161
  • Thông tin sản phẩm
  • Bình luận

Bộ chuyển đổi quang điện FIBERSYSTEM (SWEDEN) Part No 21-203 Fiber optic IEEE C37.94 M M /SM Converter

Fiber optic link - Multimode Interface
Wavelength 850nm
Fiber optical connector LC
Optical system budget 15dB in multi mode fiber 6.25/125um
Typical distance 2km
Fiber optic link - Singlemode Interface
Wavelength 1310/1550nm
Fiber optical connector LC
Optical system budget 21-203 30dB in multi mode fiber 9/125um
Optical system budget 21-203M/R 46dB in multi mode fiber 9/125um
Optical system budget 21-203L/R 50dB in multi mode fiber 9/125um
Typical distance 0-120, 0-200, 0-250km
Fiber optic protocol 125Mbit/s, multimode data is sampled at 25MSamples/s and coded with 4B/5B coding
Power Supply
DC 48V DC to 250V DC, ±20%
AC 110VAC to 230VAC ±20%, 50-60 Ηz
AC-connector IEC 320, 3 pin
Power consumption <15W
Environmental
Operating temperature range -25 to +55 oC
Storage teperature range -40 to +85 oC
Relative humidity Operating, 5 to 95 % Storage, 5 to 95 % non condensing.
