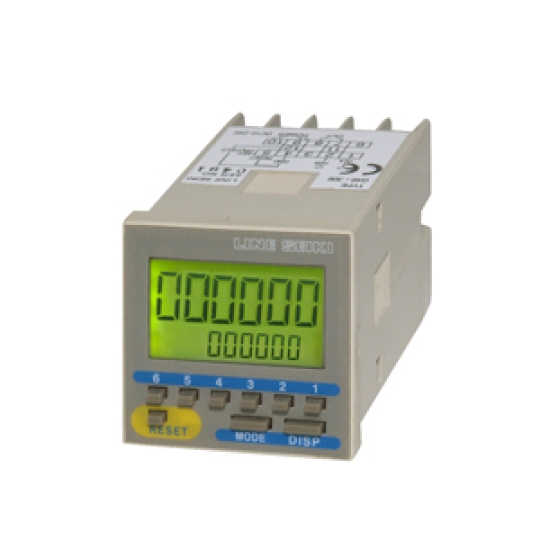

The G48 Series is a DIN 48 x 48 electronic preset counter with a large LCD display with backlight. The display is 6 digits dual layer display divided into Main display and Sub-display. The main display has a 10.0 x 5.0 mm figure size showing the count value and the Sub-display shows the preset values. Included in the display are Preset level indicators and Output indicators which can be toggled by a push of a button.

The G48 series is available in 1 or 2 level preset or 1 level + Prewarn type which makes it an ideal counter for general counting or total/batching counting applications. It is AC100-240V or DC12-24V powered and has an external power supply of DC12V for sensors. The G48 can count bidirectional (Quadrature), Add, Subtract or Add/Subtract and upon reaching the preset value/s, the built-in output relays are actuated.

Functional modes, Operation modes and Output modes are fully programmable with the menu driven display using the front panel buttons. Functional modes include: Count speed (upto 5kHz), Input Signal (Contact/Open Collector or Voltage), Prescale, Decimal Point Position, Key Protection and Free Write. It has a built-in EEPROM memory to avoid loss of count during sudden power cut. The front panel protection is IP54. Wiring connections are secured with the terminal screws.

This makes the G48 Series a versatile and functional preset counter even for the complicated applications such as packaging(batching), converting (prescale), cut-to-length (preset+prewarn) and many more. CE compliant.
