2. Product Description

2.1 General

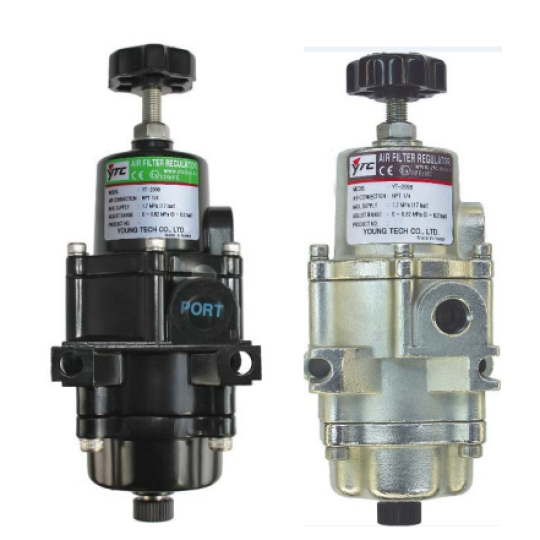

Air filter regulator, YT-200 / 205 / 220 / 225, receives the main supply air pressure and supplies to the desirable level of pressure to a positioner or other pneumatically operating devices.

2.2 Main Features and Functions

Maintains desirable pressure level, regardless of fluctuation of the main supply pressure.

5 micron filters any particles in the main supply pressure.

Relief function is available which discharges to the atmosphere, if the output pressure is higher than setting pressure.

Aluminum or stainless steel 316 body enclosure is available.

Manual or Auto draining is available.
  • YT-205BN21
  • Liên hệ
  • 359
  • Thông tin sản phẩm
  • Bình luận

Bộ điều áp bộ lọc khí AIR FILTER REGULATOR Rotork YTC YT-205BN210  Model YT-200 YT-220 YT-205 YT-225

Product Specification
Model YT-200 YT-220 YT-205 YT-225
Max Supply Pressure 1.7 MPa (17 bar)
Max Out Pressure 0.42 MPa (A Type) ; 0.84 MPa (B Type)
Air Connection PT(NPT) 1/4 PT(NPT) 1/2 NPT 1/4 NPT 1/2
Gauge Connection PT(NPT) 1/4 PT(NPT) 1/4 NPT 1/4 NPT 1/4
Ambient Temperature
Standard Temp. :-20~70℃
High Option Temp. : -20~120℃
Low Option Temp: -40~70℃
Min. Filtering Size 5 micron
Material Aluminum Diecasting Stainless Steel 316
Weight 0.6kg (1.7lb) 0.9kg (1.9lb) 1.4kg (3.0lb) 2.1kg (4.6lb)
