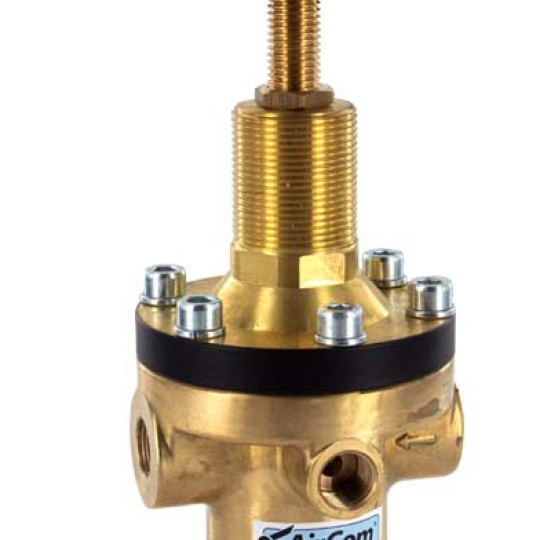

Bộ điều áp Brass Pressure Regulator R286-08G hãng AirCom Pneumatic
Diaphragm pressure regulator of solid design. Made of brass. For inlet pressure up to 60 bar.
Media: compressed air, non-corrosive gases or liquids
Supply_pressure: max. 60 bar
Adjustment: by handwheel, T-handle or hexagonal spindle, with locknut
Relieving_function: relieving, optionally non-relieving
Gauge_port: G1/4 on both sides of the body, one screw plug supplied
Mounting_position: any
Inlet_filter: stainless steel, 500 µm
Temperature_range: -10 °C to 90 °C / 14 °F to 194 °F
Body: brass
Intermediate_ring: brass at G1/4, anodized aluminium at G1
Elastomer: NBR/Buna-N
Inner_valve: brass
-
R286-08G
-
Liên hệ
-
1182
- Thông tin sản phẩm
- Bình luận
| part number | connection | supply pressure max. [bar] | pressure range [bar] | flow rate air [Nl/min] | pressure adjustment | Kv [m³/h] |
|---|---|---|---|---|---|---|
| R286-02C | G1/4 | 60 | 0,5...12 | 2000 | handwheel | 1,3 |
| R286-02E | G1/4 | 60 | 1,0...20 | 2000 | handwheel | 1,3 |
| R286-02F | G1/4 | 60 | 2,0...35 | 2000 | hex.Spindle | 1,3 |
| R286-02G | G1/4 | 60 | 3,0...50 | 2000 | hex.Spindle | 1,3 |
| R286-03C | G3/8 | 60 | 0,5...12 | 2500 | handwheel | 1,6 |
| R286-03E | G3/8 | 60 | 1,0...20 | 2500 | handwheel | 1,6 |
| R286-03F | G3/8 | 60 | 2,0...35 | 2500 | hex.Spindle | 1,6 |
| R286-03G | G3/8 | 60 | 3,0...50 | 2500 | hex.Spindle | 1,6 |
| R286-04C | G1/2 | 60 | 0,5...12 | 3500 | handwheel | 2,3 |
| R286-04E | G1/2 | 60 | 1,0...20 | 3500 | handwheel | 2,3 |
| R286-04F | G1/2 | 60 | 2,0...35 | 3500 | hex.Spindle | 2,3 |
| R286-04G | G1/2 | 60 | 2,0...50 | 3500 | hex.Spindle | 2,3 |
| R286-08C | G1 | 60 | 0,5...12 | 5000 | 3,2 | |
| R286-08E | G1 | 60 | 1,0...20 | 5000 | 3,2 | |
| R286-08F | G1 | 60 | 2,0...35 | 5000 | 3,2 | |
| R286-08G | G1 | 60 | 2,0...50 | 5000 | 3,2 |
