High-Voltage Control Units for ESP's

The operation of a transformer rectifier unit always includes a corresponding controller unit. The control unit guarantees optimum adaptation of the high voltage to the operating conditions of the electrostatic precipitator and the associated optimum dust separation in the filter. Normally, the controller units are designed as flashover rate controllers with subordinate voltage and current control functions.

Rico-Werk has successfully developed many generations of controllers for electrostatic precipitators since 1978 and thousands of them are in use worldwide.

Thanks to the continuous further development of the controller units and our many years of experience, we can always offer you an optimum solution:

Current controller units for electrostatic precipitator operation:

• Gemini (digital controller with fieldbus interface)
• Prometos-DP (digital controller with Profibus interface)
• gamma-DP (digital controller for three-phase technology with Profibus interface)
• Typ 835 (analog controller)

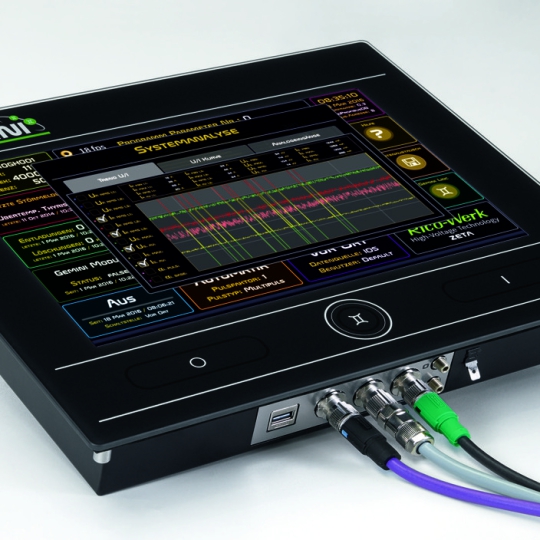

Complete voltage regulator typ: GEMINI-Alphaeach consisting of:
- Gemini (Alpha)stock-no.: 591 700 Rico Werk
- Gemini-ASP (Alpha) stock-no.: 591 740-Alpha

- Gemini PowerBoost (Alpha) with bluetooth interface for Powerboost BT Appstock-no.: 591 770-Alpha
- IPA2AlphaSyncstock-no.: 591 417 Rico Werk

- 1x LEM Transducer (depending on performance, please specify)stock-no.: 432 071-76
- 1x MOLEX cable (4-pol.) stock-no.: 545 800 Rico Werk
- connection line 8 pole (2m) stock-no.: 584 900 Rico Werk
- connection line 5 pole (2m) stock-no.: 584 901 Rico Werk
- connection line 17 pole (2m) stock-no.: 584 902 Rico Werk
- connection line Sync Power Cable stock-no.: 545 851 Rico Werk
- fiber optic cable Duplex (2m) stock-no.: 545 747 Rico Werk
- 2x transfer module Typ: VIP-2/PT/FLK14 stock-no.: 474 281 Rico Werk
- 2x pre-assembled cable with plug and single wire Typ: VIP-CAB-FLK14/FR/OE/0,14/1,0 stock-no.: 474 282 Rico Werk
- 15x Terminal (4 floor) Typ: ST 2,5-PE/3L - Power-supply Typ: e.g. Puls

Automatic voltage regulator (discontinued) (replacement model for 591601 Rico Werk , 591605 Rico Werk , 591614 Rico Werk) 100 % compatible
Typ: Prometos/X DP (USB) Stock No. 591 615 Rico Werk

Analog signal devider for Prometos Gamma Regulator Stock no. 591 323 Rico Werk
