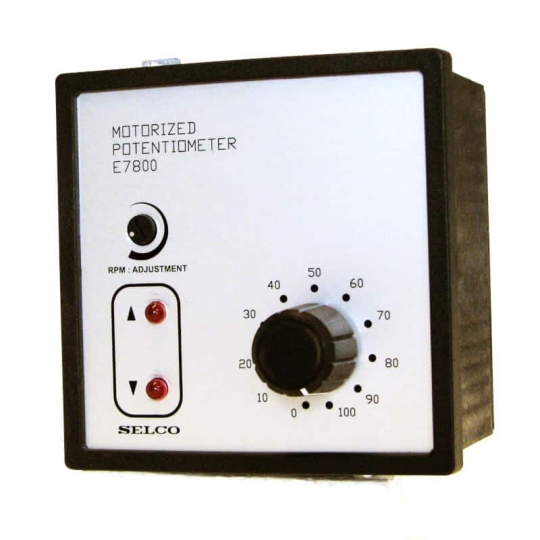

The E7800 Motorized Potentiometer

The E7800 Motorized Potentiometer is typically used as an interface between increase/decrease relay contacts (or push buttons) and a device requiring control by an external potentiometer (e.g. the speed trim of an electronic governor).

All three wires of the potentiometer are directly accessible on external connection terminals, thus providing the best possible flexibility for almost any application.

A special version of the E7800 with DC voltage output is also available. The DC output voltage follows the position of the potentiometer. The design of the E7800 ensures that the potentiometer will “remember” its position although supply is lost.

Features:

• • Sealed wire wound potentiometer
  • Built-in dust seal
  • Low speed motor for accurate control
  • High drive capability
  • Resistance from 100 to 10 kohm
  • Large size knob for manual control
  • LED indication of turn direction
  • Optional programmable RPM
  • AC or DC supply
