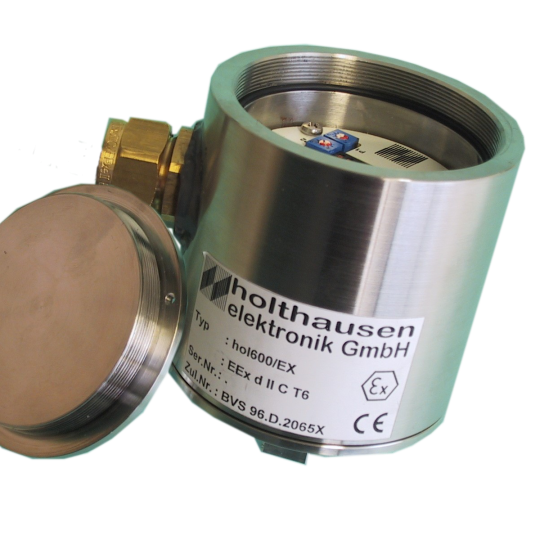

Bộ điều khiển độ rung ESW Compact-Ex-001  Holthausen Elektronik GmbH
The device is approved under atmospheric conditions or flammable dusts for use in gas-air mixtures according to the ATEX Directive 2014/34/EU.

APPLICATION FIELDS:

In all technical applications in which oscillations occur, the ESW® - Compact / Ex (hol600) is a valuable aid constitutes Here are some examples:.
• Fans, pumps and blowers
• vibrators, decanters and separators
• Conveyor and transport equipment
• Drives
• Machine tools, processing and production machines

TECHNICAL DATA:

Operating voltage:

24V DC (± 5%)

Power consumption:

max. 100mA

Temperature range:

-20°C to +65°C

Degree of protection:

IP 68

weight:

2.350g

Connection cable:

2m AWG20CUL sw 10x0,56mm², shield, cover material: special PVC, min. Bending radius: 20cm

Measuring range:

0 to 10/0 to 20/0 to 50mm/s, switchable

Signal detection:

RMS

Frequency range:

10Hz to 1kHz (-3dB)

Switching outputs:

two potential free contacts K1 and K2 (30V, 1A)
