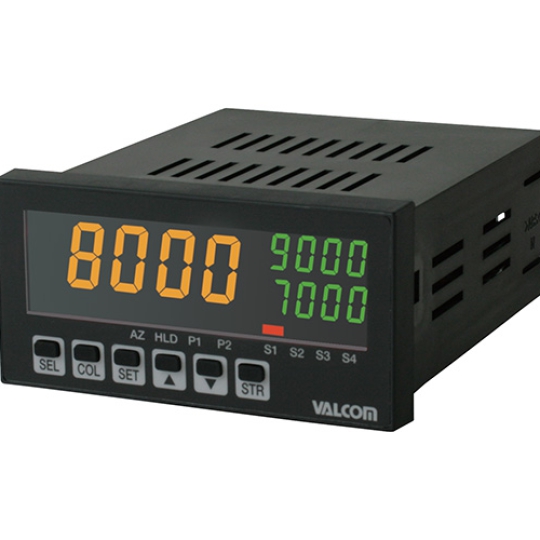

Bộ điều khiển nhiệt độ Valcom Digital Panel Meter VALCOR series F3 series

Indicates the change in condition with

change of color. LCD adopted.

F3 type has up to four setting outputs per input channel.

Highly versatile panel meter suitable to various occasions.

Current operation state (normal/abnormal) can be found easily by the color of the value (on main display).

Measured values can be displayed in 3 colors: red, orange and green, as desired, in areas partitioned by set values.

High speed sampling as fast as 2000 samples per second.

Fast output enables use for high-speed and safe control purposes.

Analog output ranges of 4 to 20 mA, 1 to 5 V and 0 to 5 V included as standard.

Output scaling function included, which allows the measurement range to be set variable as desired.

Mã sản phẩm:
F34N-S
Giá:
Liên hệ
Lượt xem:
1382

Thông tin sản phẩm
Bình luận

Input signal	Process input: 4–20mA/0–5V/1–5V/0–10V Selectable Power supply for sensor: DC12V 80mA max.
Input impedance	4–20mA: 68Ω 0–5V/1–5V/0–10V: 68kΩ
Display	−9999–9999 (User selectable decimal places) 7 segment 4-digit LCD with 3 changeable colors (red, orange and green)
Sampling cycle	2000 times/sec Max.
Indication Conversion Rate	1–10 times/sec Selectable
Accuracy	Display: ± 0.05%F.S.±1digit (25°C±3°C) Analog output: ±0.5%F.S. (25°C±3°C)
Analog output	4–20mA/0–5V/1–5V Range to be switched, Option 0–10V (*1)
Setting output (Select by model)	4-setting Relay output, AC125V, 0.3A (per 1 setting)/ DC24V, 1A (per 1 setting) Response time 3msec. or less(1) 4-setting Photomos Relay output, AC / DC250V, 0.1A (per 1 setting) Response time of compaarison output 2msec. or less (1)
Operating temperature range	0–55°C (No freezing)
Operating humidity range	35–85%RH (No condensation)
Power supply (Select by model)	AC90–240V 50/60Hz Current consumpiton 15VA or less
Power supply (Select by model)	DC24V ±10% Current consumpiton 300mA or less
Dimensions	97(W)×48.8(H)×132.5(D) *Option terminals are not described in the following figure
Weight	Approx. 300g (Varies with specification)
Accessories	Operation manual (1 copy), Unit labels, List of initial settings, Panel mounting bracket, Amphenol connector (5730240) (BCD output function only)
Other Functions	Display scaling, Analog output scaling, Display hold (upper peak/bottom peak/transition peak/peak-to-peak/sample hold), Auto-zero, Max./min. value indication, Pattern selection, Simulation, Input value shift, sub-display ON/OFF, Key protection, Main display color change, Display update rate setting, Power-saving mode ON/OFF, Sampling rate setting, Dumping time constant, Zero suppress ON/OFF, Fix-zero, Tracking zero

(*1)0–90% of response time. Sampling cycle, damping time constant at high-speed setting

Setting output

F3	4-setting output to ch.1

Option output

A5 Analog output (0–10V)	0–10V Safe load resistance 10kΩ or more Response time 2.5msec.or less(*) Analog output accuracy ±0.5%F.S.(25°C±3°C) Temperature characteristics ±0.35%F.S./10°C
BO BCD open collector output	NPN open collector DC50V 100mA or less Response time 1.5msec. or less (*)
RS RS-232C	RS-232C-compliant 2-wire half-duplex Asynchronous Communication rate (300/600 1200/2400/4800/9600/19200/38400 bps) Stop bit (1, 2bit) Parity (NON/ODD/EVEN) Data length (7, 8bit) unit No. (0–99)
R1 RS-485	RS-485-compliant 2-wire half-duplex Asynchronous Communication rate (300/600 1200/2400/4800/9600/19200/38400 bps) Stop bit (1, 2bit) Parity (NON/ODD/EVEN) Data length (7, 8bit) unit No. (0–99)
