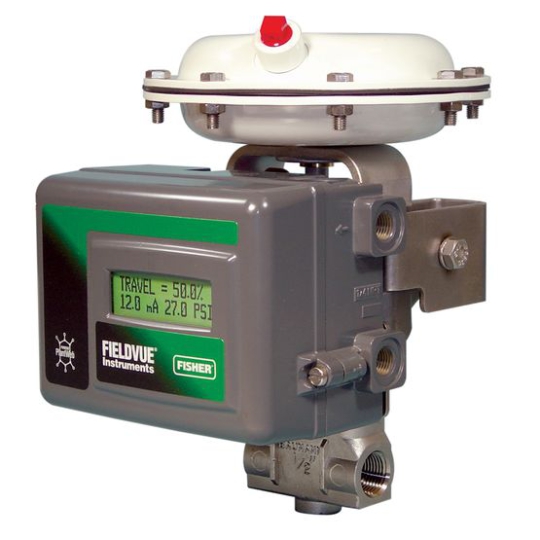

Fisher FIELDVUE DVC2000 Digital Valve Controller

The performance and simplicity of the Fisher FIELDVUE DVC2000 instrument allows for your operation to run closer to setpoint, improving product quality with more accurate control. Using FIELDVUE Performance Diagnostics, valve operation is monitored online to evaluate performance and reliability.

Specifications

Area ClassificationIntrinsically Safe, Non-incendive for CSA and FM

CertificationsCSA, FM, ATEX, IECEx, CUTR, PED, UL, Peso, KGS, INMETRO, NEPSI, ANZEx

Communication ProtocolHART, 4-20mA Analog

Data InterfaceWired

DiagnosticsYes

Input SignalElectric

Max Outlet Pressure101 psig

Mounting TypeIntegral Mounted

Operating TemperatureStandard Temperature, High Temperature

Position ControlThrottling Control, On/Off

Power SourceLocal

Process ControlFlow, Pressure, Temperature, Level

Supply MediaAir, Non Corrosive Gas
