SELECTION TABLE
Bộ điều khiển van Johnson Controls VGA7000 series Globe Valve
Bộ điều khiển van Johnson Controls VGA8000 series Globe Valve
Bộ điều khiển van Johnson Controls VAP1000S-24-B 1000 30 S12
Bộ điều khiển van Johnson Controls VAP1000L-24-B 1000 50 S14

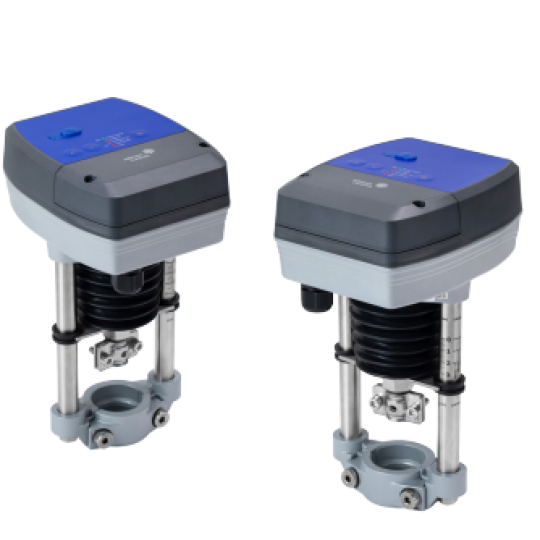

Bộ điều khiển van Johnson Controls VAP3000L-24-B 3000 50 S14
Bộ điều khiển van Johnson ControlsVAP600S-24-C 600 30 S12 actuator stem retracts when input signal increases
Bộ điều khiển van Johnson ControlsVAP1000L-24-C 1000 50 S14 VPMA series PICV
Bộ điều khiển van Johnson Controls VAP3000L-24-C 3000 50 S14
Note: See “VGA7000 series Valve”, “VGA8000 series Valve” and “VPMA series Valve” Product Bulletins for more information of valves
and compatibility selection tables.
TECHNICAL SPECIFICATIONS
Control Modes Proportional Control Floating Control
Input Signal 0(2)~10VDC / 0(4)~20mA 3-point
Feedback Signal 0(2)~10VDC / 0(4)~20mA
Supply Voltage (50/60Hz) 24VAC / VDC ± 15%
Power Consumption
VAP600xx / VAP1000xx : 27VA (24VAC), 12VA (24VDC)
VAP3000xx : 40VA (24VAC), 20VA (24VDC)
Running Speed Selectable (High speed: 1s/mm；Low speed: 2s/mm)
Input Impedance 100kΩ min. at 0(2)~10V； 0.15kΩ max. at 0(4)~20mA
Operating Status Indications LED
Enclosure protection IP65 (EN60529)
Cable Entry Waterproof connector PG13.5
Wiring terminal 1 ~ 6mm²
Ambient Operating Condition -25℃ to 65℃, ≤95% RH%, non-condensing
Ambient Storage Condition -40℃ to 65℃, ≤95% RH%, non- condensing
Materials
Cover PC
Housing and Yoke Stainless Steel
Net weight (kg) VAP600xx / VAP1000xx : 3.0kg；VAP3000xx : 3.8kg
CE Compliance Johnson Controls declares that this product is in compliance with the essential requirements and other
relevant provisions of the EMC Directive and Low Voltage Directive.
