SPV

The best way to organize the wiring with classic electrical controllers.

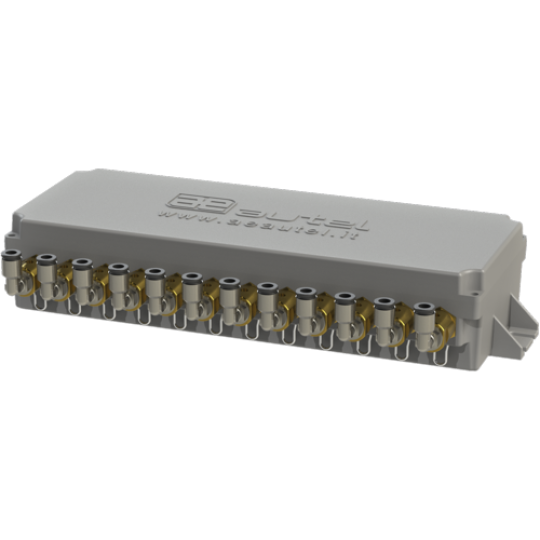

The SIMPLE PILOT VALVES is a new generation of painted aluminium pilot box usable to control and manage pneumatic valves.

The box can be provided from a minimum of 4 to a maximum of 12 pilots.

As an option, it can be provided with an heating system controlled by an internal thermostat, working at temperatures of less than 5°C. With the heating system the controlled is allowed working up to -40°C.

It is usually combined with an Ecomatic economizer: electrical impulses coming from the instrument command (in sequence) coils placed in the box and activate the pneumatic pilot. Each pilot is connected via Rilsan tube to the upper chamber of the valve of the tank and at each pulse commands the pneumatic valve.

This box are provided of M20 and two M16 cable glands.

It is possible to demand more cable glands or special cable glands, according to customer's specification.

The modularity and versatility combined ECOMATIC - SIMPLE PILOT VALVES is the perfect solution for any type of filtration plant.
