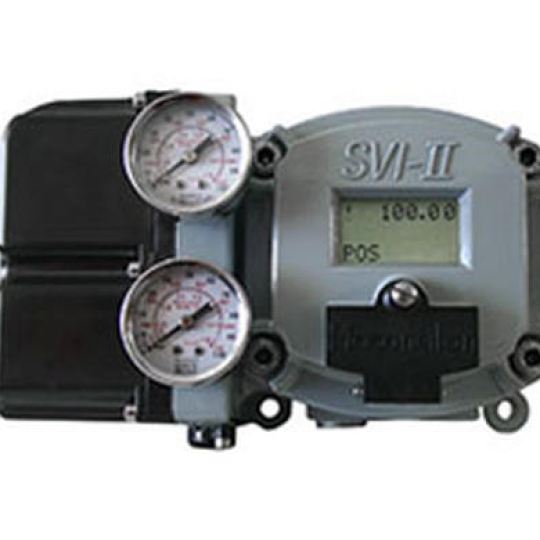

The Baker Hughes SVI* II AP (Smart ValveInterface, Advanced Performance) is a 32 bit microprocessor digital valve positioner with a local interface that controls a pneumatic actuator using a two-wire 4-20mA control signal. The instrument offers bi-directional communication using the HART® protocol. Its universal design offers ease of retrofit in place of existing analog positioners on Masoneilan* or non-Masoneilan pneumatic actuators, either single-acting or double-acting.

Features / Benefits :

Non-Contact Position Sensing Technology:

• Sensing through the housing, no mechanical moving parts entering the main housing cavity, prolonging the life
• Simple mounting procedure

Easy, Simple, Accurate:

• LCD and pushbuttons operable in all certified hazardous environments
• Quick and accurate commissioning with auto stops and auto tune methods
• One design fits many applications
  • Rotary or Linear
  • Remote or Local

Specifications

Signal - Communication

• HART 5 or 7 over 4-20mA

Diagnostics

• Standard Diagnostics
• Advanced Diagnostics

Construction / Materials

• Copper-free Aluminum Housing

Operating Temperature

• -50°C to +85°C

Pneumatics Action

• Single or Double Acting, fail safe
• Rotary and linear

Supply Pressure

• 20 to 150psi

Air Delivery

• 280 SLPM @ 30psi

Certification

• ATEX, IECEx, US, Canada approvals for
  • Flameproof/Explosion-proof
  • Intrinsic Safety
  • Dust Ignition proof
  • Non-Incendive
