Technical specifications

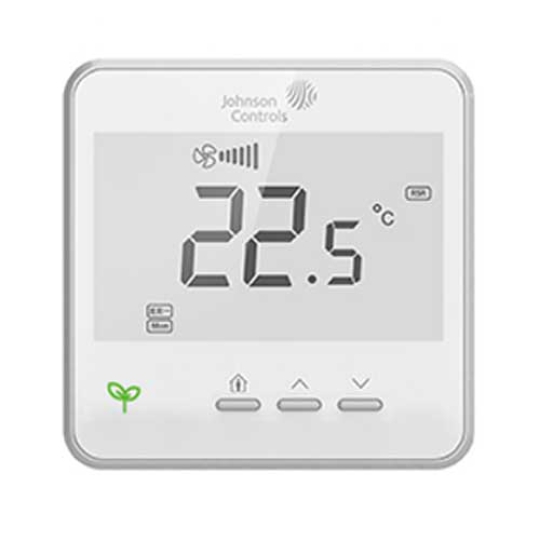

T7600 series Modbus LCD thermostat

Supply Voltage 110-240 VAC 50/60 Hz

Power consumption Max. 5VA

Terminations Screw terminal block

Communication Modbus RTU

Wire size Screw terminal block: 1.0-1.5mm² rigid conductor for 5mm connector; 0.14-1.5 mm² rigid

conductor for 3.5mm connector

Mounting Flush-mounted

Temperature measurement range 0 to 49℃ (32 to 99oF)

Temperature accuracy 1℃ (2oF)

Default temperature set point range 5.0℃ to 35.0℃ in 0.5°increments

Ambient conditions

Operating: 0 to 40℃ (32 to 104oF), 10 to 90% RH, noncondensing, 29℃ (85oF) maximum dewpoint

Storage: -20 to 60℃ (-4 to 140o

F), 5 to 95% RH, noncondensing

Protection class IP20

Pollution degree 2

Heat and fire resistance category D

Temperature for ball pressure test 125℃

Limitation of operating time Continuous

Product category Type 1.B P42(74)

Internal temperature sensor type 10K NTC type II

Shipping weight Approx 300g

Compliance

CE mark

RCM mark, Australia/NZ emissions compliance

RoHS, REACH, WEEE
