CEV58M-00051

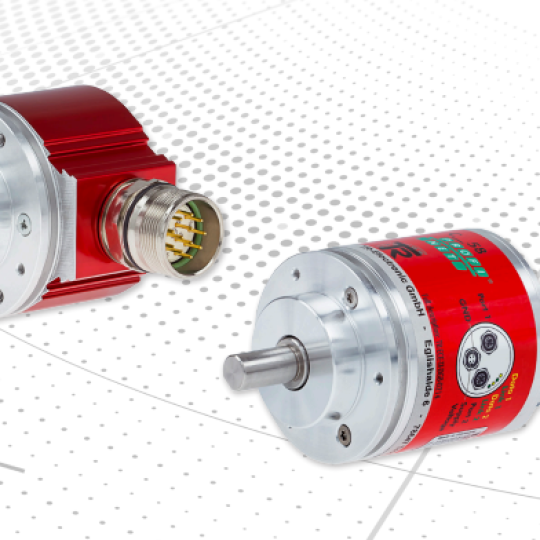

TR-ELECTRONIC ENCODER CEVM58

Produktdatenblatt/ Product Data Sheet

Art.: CEV58M-00051

Descr.: CEV58M*8192/4096 SSI ZB36/10FL

========================================================================

NO.OF STEPS/REV: 8.192,000

NO. OF REVOLUTIONS: 4.096,000

PROGRAMMABLE: PROG.

INTERFACE: SSI

CODE: GRAY

SUPPLY VOLTAGE: 11-27V

OUTPUT LEVEL: RS422

PROTECTION Class: IP65

TEMPERATURE RANGE: -20+70°C

FLANGE TYPE: ZB 36, 15 THICK

SHAFT TYPE: 10FL/19,5

CONNECTOR TYPE: CONTACT 12P

CONNECTOR-POSITION: CONNECTOR RADIAL ON HOUSING

PINOUT NO.: 185E

MATING PLUG: YES

OPTIONS ENC: F/R

OPTIONS ENC: PRESET 1+2

OPTIONS ENC: PROGRAMMABLE

DRAWING NO.: 04-CEV58M-M0036

VERSIONNO: 000

FIRMWARE NO: 437696

DATEI: CE816-095

_________________________________________________________________________

GL = Wellenausführung glatt / shaft type cylindrical

FL = Wellenausführung mit Fläche / shaft type with flat surface

N = Wellenausführung mit Nut / shaft type with slot

Hohlw = Hohlwelle / hollow shaft

Klemme = mit Klemmring / with clamping ring

Grundw = Grundwelle / fundamental shaft

SLG = Seillängengeber / cable retractor

ZB = Zentrierbund / centre ring

Tachofl = Tachoflansch / tachometer flange

DAG = DAG-Schutzgehäuse / DAG protective housing

TK = Teilkreis / pitch circle
