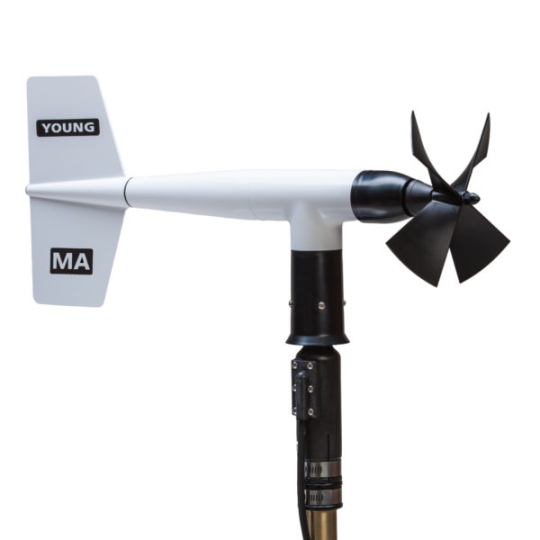

Marine Wind Monitor

05106

The Wind Monitor MA is an accurate and reliable wind sensor specifically designed for the rigors of the marine environment.
  • 05106 YOUNG USA
  • Liên hệ
  • 1410
  • Thông tin sản phẩm
  • Bình luận
Range:

Wind speed: 0-100 m/s (224 mph)
Azimuth: 360° mechanical, 355° electrical (5° open)

Accuracy:

Wind speed: ± 0.3 m/s (0.6 mph) or 1% of reading
Wind direction: ± 3°

Threshold: *

Propeller: 1.0 m/s (2.4 mph)
Vane: 1.0 m/s (2.4 mph)

Dynamic Response: *

Propeller distance constant (63% recovery) 2.7 m (8.9 ft)
Vane delay distance (50% recovery) 1.3 m (4.3 ft)
Damping ratio: 0.3
Damped natural wavelength: 7.4 m (24.3 ft)
Undamped natural wavelength: 7.2 m (23.6 ft)

Signal Output:

Wind speed: magnetically induced AC voltage, 3 pulses per revolution. 1800 rpm (90 Hz) = 8.8 m/s (19.7 mph)
Azimuth: analog DC voltage from conductive plastic potentiometer − resistance 10K Ω , linearity 0.25%, life expectancy − 50 million revolutions

Power Requirement:

Potentiometer excitation: 15 VDC maximum

Operating Temperature:

-50 to 60°C

Sensor Cable:

A water tight pigtail cable is supplied for electrical connections. Available in standard lengths of 3, 8 and 12 meters.
For longer cable lengths a user supplied junction box or connector may be used.

Dimensions:

Overall height: 37 cm (14.6 in)
Overall length: 55 cm (21.7 in)
Propeller: 18 cm (7 in) diameter
Mounting: 34 mm (1.34 in) diameter (standard 1 inch pipe)

Weight:

1.0 kg (2.2 lbs)

Shipping Weight:

2.3 kg (5 lbs)

Model 05603C:

Wind Sensor Interface
Signal outputs: 0-5.00 VDC full scale
Power requirement: 8-24 VDC (5 mA @ 12 VDC)
Operating temperature: -50 to 60°C

Model 05631C:

Wind Line Driver
Signal outputs: 4-20 mA full scale
Power requirement: 12-30 VDC (40 mA max.)
Operating temperature: -50 to 60°C

*

Nominal values, determined in accordance with ASTM standard procedures.

WIND MONITOR-MA  WIND MONITOR-MA3M Cable    05106
WIND MONITOR-MA   WIND MONITOR-MA8M Cable    05106-8M
WIND MONITOR-MA  WIND MONITOR-MA12M Cable    05106-12M
SURGE PROTECTION ASSEMBLY   SURGE PROTECTION ASSEMBLY6 Channel    19120
WIND SENSOR INTERFACE (for use with Model 05106)     WIND SENSOR INTERFACE (for use with Model 05106)0-5 VDC Outputs (recommended cable: 18446)    05603C
WIND LINE DRIVER (for use with Model 05106)    WIND LINE DRIVER (for use with Model 05106)4-20 mA Outputs (recommended cable: 18723)    05631C
SENSOR CABLE, 5 CONDUCTOR SHIELDED   SENSOR CABLE, 5 CONDUCTOR SHIELDED22 AWG, Per Ft.    18446
SENSOR CABLE, 2 PAIR SHIELDED    SENSOR CABLE, 2 PAIR SHIELDED22 AWG, Per Ft.    18723
SENSOR CABLE, 6 CONDUCTOR SHIELDED    SENSOR CABLE, 6 CONDUCTOR SHIELDED22 AWG, Per Ft.    18721
