MATERIAL NUMBER:

X20CP3584

DESCRIPTION:

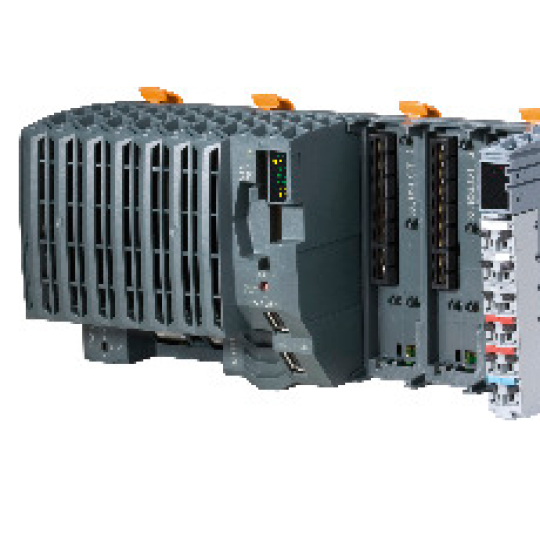

Intel Atom 600 MHz processor with an additional I/O-processor

Onboard Ethernet, POWERLINK with poll response chaining and USB

3 slots for modular interface expansion

CompactFlash as removable application memory

256 MB DDR2-SDRAM

Controller redundancy possible

Fanless

The X20CP3585 CPU is based on an ATOM processor clocked at 0.6 GHz and equipped with 256 MB DDR2 SDRAM.

USB, Ethernet, POWERLINK and removable CompactFlash are all included as standard features. A Gigabit Ethernet interface is a standard feature. For even more real-time network performance, the onboard POWERLINK interface supports poll response chaining mode (PRC).

The CPU has 3 slots available for X20 communication modules. Various bus and network systems can easily be integrated into the X20 system through the use of communication modules.
