Technical Data

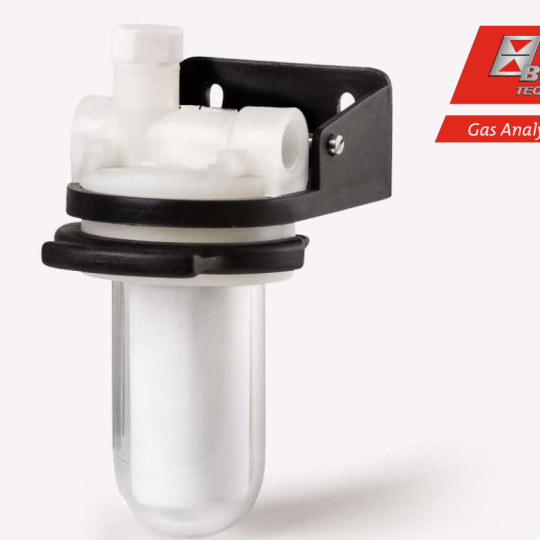

Fine mesh filter AGF-PV-30
Material – Filter head PVDF
Material – Filter cover Glass
Material – Gasket Viton
Thread (A) G1/4 or NPT 1/4" (see ordering information)
Max. operating pressure 4 bar
Max. operating temperature 100 °C
Mechanical load Tested based on DNV-GL CG0339 vibration class A (0.7g)
2 Hz-13.2 Hz Amplitude ± 1.0 mm
13.2 Hz -100 Hz 0.7g acceleration
Ordering instructions
Filter*
AGF-PVAGF-PV-I
30-S2
30-S2-I
30-S2-A
30-S2-A-I
30-F2
30-F2-I
30-F2-A
30-F2-A-I
30-F2-L
30-F2-L-I
30-F25
30-F25-I
30-F25-A
30-F25-A-I
30-F25-L
30-F25-L-I
30-F25-L-A
30-F25-L-A-I
30-AKF
30-AKF-I
Filter fineness 2 µm 2 µm 2 µm 2 µm 2 µm 25 µm 25 µm 25 µm 25 µm 1 µm
Item no. (G1/4) 4150099 4150199 41502999 4151999 4150799 4150299 4150399 4150499 4150599 4153099
Item no.(NPT 1/4") 4150099I 4150199I 41502999I 4151999I 4150799I 4150299I 4150399I 4150499I 4150599I 4153099I
Element S2 S2 F2 F2 F2-L F25 F25 F25-L F25-L AKF
Dead volume 57 ml 69 ml 57 ml 57 ml 108 ml 57 ml 63 ml 108 ml 117 ml 45 ml
Weight approx. 0.28 kg 0.29 kg 0.24 kg 0.29 kg 0.29 kg 0.23 kg 0.24 kg 0.29 kg 0.30 kg 0.23 kg
* one filter element is included with delivery.
Filter elements
Item no. Model Material Filter fineness Filter surface Packing unit Ex application
41 01 00 10 S2 Fibreglass 2 µm 80 cm² 5 pieces IIC
41 01 00 2 S2 Fibreglass 2 µm 80 cm² 25 pieces IIC
41 03 00 50 F2 PTFE 2 µm 60 cm² 5 pieces IIB
41 02 00 50 F2-L PTFE 2 µm 125 cm² 2 pieces IIB
41 02 01 30 F25 PTFE 25 µm 60 cm² 5 pieces IIB
41 01 01 20 F25-L PTFE 25 µm 125 cm² 2 pieces IIB
41 010 130 AKF Active carbon 1 µm 45 cm² 1 pieces not suitable for use in Ex areas
