STANDARDIZATION OF LINE FILTERS For the correct size of the Line Filter it is necessary to know the main parameters of the circuit, like supply transformer power, supply voltage, converter nominal current, short circuit capacity, inductive value of the downstream circuit.

Code IP00 Code IP20 Model Converter range  (converter IDC) Dimensions  W*H*D
AC supply 380-440 V A IP00 IP20

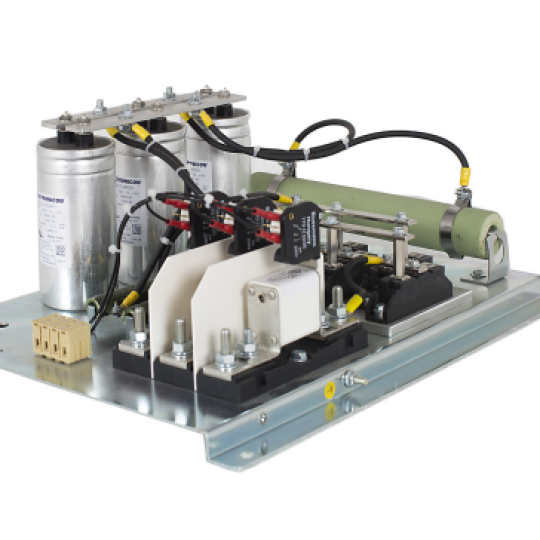

Bộ lọc SECOM FSK FILTER SECOM 110870R1002 110870R1202 FSK.10.04 up to 1000 375x440x120 375x440x242
Bộ lọc SECOM FSK FILTER SECOM 110870R1005 110870R1205 FSK.20.04 1050 ÷ 2000 375x440x120 375x440x242
Bộ lọc SECOM FSK FILTER SECOM 110870R1008 110870R1208 FSK.30.04 2050 ÷ 3000 375x440x120 375x440x242
Bộ lọc SECOM FSK FILTER SECOM 110870R1011 110870R1211 FSK.40.04 3050 ÷ 4000 375x440x120 375x440x242
Bộ lọc SECOM FSK FILTER SECOM 110870R1012 110870R1212 FSK.50.04 4050 ÷ 5000 * *
AC supply 460-525 V A IP00 IP20
Bộ lọc SECOM FSK FILTER SECOM  Code 110870R1014 110870R1214 FSK.10.05 up to 1000 375x440x163 375x440x242
Bộ lọc SECOM FSK FILTER SECOM  110870R1017 110870R1217 FSK.20.05 1050 ÷ 2000 375x440x163 375x440x242
Bộ lọc SECOM FSK FILTER SECOM  110870R1020 110870R1220 FSK.30.05 2050 ÷ 3000 375x440x163 375x440x242
Bộ lọc SECOM FSK FILTER SECOM  110870R1023 110870R1223 FSK.40.05 3050 ÷ 4000 110870R1023 110870R1223
Bộ lọc SECOM FSK FILTER SECOM  110870R1024 110870R1224 FSK.50.05 4050 ÷ 5000 * *
AC supply 530-690 V A IP00 IP20
Bộ lọc SECOM FSK FILTER SECOM  110870R1026 110870R1226 FSK.10.06 up to 1000 375x440x163 375x440x163
Bộ lọc SECOM FSK FILTER SECOM  110870R1029 110870R1229 FSK.20.06 1050 ÷ 2000 375x440x163 375x440x163
Bộ lọc SECOM FSK FILTER SECOM  110870R1032 110870R1232 FSK.30.06 2050 ÷ 3000 375x440x163 375x440x163
Bộ lọc SECOM FSK FILTER SECOM  110870R1035 110870R1235 FSK.40.06 3050 ÷ 4000 375x440x163 375x440x163
Bộ lọc SECOM FSK FILTER SECOM  110870R1036 110870R1236 FSK.50.06 4050 ÷ 5000 * *
AC supply 700-800 V A IP00 IP20
Bộ lọc SECOM FSK FILTER SECOM  110870R1038 110870R1238 FSK.10.07 up to 1000 375x440x163 375x440x163
Bộ lọc SECOM FSK FILTER SECOM  110870R1041 110870R1241 FSK.20.07 1050 ÷ 2000 375x440x163 375x440x163
Bộ lọc SECOM FSK FILTER SECOM  110870R1044 110870R1244 FSK.30.07 2050 ÷ 3000 375x440x163 375x440x163
Bộ lọc SECOM FSK FILTER SECOM  110870R1047 110870R1247 FSK.40.07 3050 ÷ 4000 375x440x163 375x440x163
Bộ lọc SECOM FSK FILTER SECOM  110870R1048 110870R1248 FSK.50.07 4050 ÷ 5000 * *

AC supply 800-900 V A IP00 IP20
Bộ lọc SECOM FSK FILTER SECOM 110870R1050 110870R1250 FSK.10.08 up to 1000 375x440x120 375x440x242
Bộ lọc SECOM FSK FILTER SECOM 110870R1053 110870R1253 FSK.20.08 1050 ÷ 2000 375x440x120 375x440x242
Bộ lọc SECOM FSK FILTER SECOM 110870R1056 110870R1256 FSK.30.08 2050 ÷ 3000 375x440x120 375x440x242
Bộ lọc SECOM FSK FILTER SECOM 110870R1059 110870R1259 FSK.40.08 3050 ÷ 4000 375x440x120 375x440x242
Bộ lọc SECOM FSK FILTER SECOM 110870R1060 110870R1260 FSK.50.08 4050 ÷ 5000 * *
AC supply 850-990 V A IP00 IP20
Bộ lọc SECOM FSK FILTER SECOM 110870R1061 110870R1261 FSK.10.09 up to 1000 550x413x316 550x413x316
Bộ lọc SECOM FSK FILTER SECOM 110870R1062 110870R1262 FSK.20.09 1050 ÷ 2000 550x413x421 550x413x421
Bộ lọc SECOM FSK FILTER SECOM 110870R1065 110870R1265 FSK.30.09 2050 ÷ 3000 550x413x421 550x413x421
Bộ lọc SECOM FSK FILTER SECOM 110870R1068 110870R1268 FSK.40.09 3050 ÷ 4000 550x413x421 550x413x421
Bộ lọc SECOM FSK FILTER SECOM 110870R1069 110870R1269 FSK.50.09 4050 ÷ 5000 * *
AC supply 1000-1250 V A IP00 IP20
Bộ lọc SECOM FSK FILTER SECOM 110870R1070 110870R1270 FSK.10.10 up to 1000 586x476x450 586x476x450
Bộ lọc SECOM FSK FILTER SECOM 110870R1071 110870R1271 FSK.20.10 1050 ÷ 2000 586x476x450 586x476x450
Bộ lọc SECOM FSK FILTER SECOM 110870R1074 110870R1274 FSK.30.10 2050 ÷ 3000 586x476x450 586x476x450
Bộ lọc SECOM FSK FILTER SECOM 110870R1077 110870R1277 FSK.40.10 3050 ÷ 4000 586x476x555 586x476x555
Bộ lọc SECOM FSK FILTER SECOM 110870R1078 110870R1278 FSK.50.10 4050 ÷ 5000 * *
