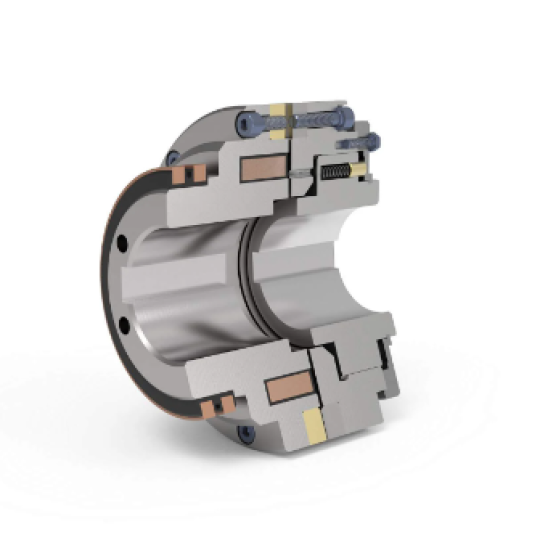

Bộ ly hợp Stromge Z Tooth Clutch Type : ZHA 250 Same as existing clutch with s/no : 249902-10
Model | Max Speed [min-1] |
Weight [kg] |
Torque [N・m] |
Coil 20deg.C Voltage DC [V] |
Coil 20deg.C Wattage [W] |
Coil 20deg.C Current [A] |
Air Gap Clutch Open [mm] |
---|---|---|---|---|---|---|---|
ZHA16 | 4800 | 23.00 | 160 | 24 | 118.0 | 4.92 | 0.5 |
ZHA25 | 4200 | 29.00 | 250 | 24 | 130.0 | 5.43 | 0.5 |
ZHA40 | 3800 | 37.00 | 400 | 24 | 139.0 | 5.80 | 0.6 |
ZHA63 | 3400 | 49.00 | 630 | 24 | 158.6 | 6.61 | 0.6 |
ZHA100 | 3000 | 66.00 | 1000 | 110 | 189.0 | 1.72 | 0.6 |
ZHA160 | 2700 | 90.00 | 1600 | 110 | 253.0 | 2.30 | 0.7 |
ZHA250 | 2400 | 124.00 | 2500 | 110 | 305.0 | 2.77 | 0.7 |
ZHA400 | 2200 | 170.00 | 4000 | 110 | 366.0 | 3.33 | 0.7 |
ZHA630 | 1900 | 232.00 | 6300 | 110 | 402.0 | 3.66 | 0.8 |
ZHA1000 | 1600 | 334.00 | 10000 | 110 | 502.0 | 4.57 | 0.8 |
Bộ ly hợp Stromag Z Tooth Clutch Type : ZHA 250 Same as existing clutch with s/no : 249902-10
Bộ ly hợp Stromag GKN-Stromag electromagnetic tooth clutch Type : ZHA 250 Coil voltage 110 V , 275 wat Same as existing unit with S/N : 258798
Bộ ly hợp Stromag GKN-Stromag electromagnetic tooth clutch Type : ZHA 250 Same as existing unit with S/N : 258798
