823901-52

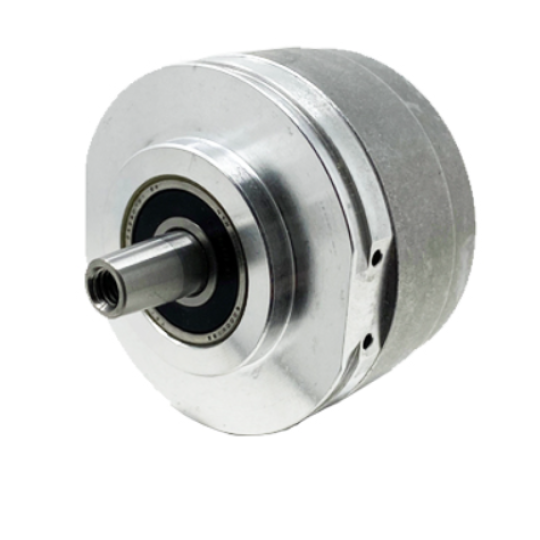

Rotary encoder

with integral bearing

Differentiable revolutions: 4096

Positions per revolution: 8192

Data interface: EnDat01

Output code: Dual

Line count: 2048

Output signal: ~1Vpp

Cutoff frequency (-3 dB): 400.00 kHz

Power supply: 3.6 V ... 14 V

Coupling version: without coupling

Shaft: Tapered shaft 1:10, functional diameter 9.25 mm, back-off thread M10 and M6

Degree of protection: IP 40 (EN 60529)

Operating temperature: -40/+115 °C

Electrical connection: Plug connector, straight, double-row, 12-pin,

with locking mechanism and walls

Pin configuration: D323746

Connecting direction: Cable outlet for axial and radial use

Included part: Mounting kit with spacer plates and central screw

Please pay attention to the product documentation!

Amended part numbers are compatible with your requested items (ID: 655251-03),

please incorporate the changes into your documentation
