Advantages

Main Functions

ON/OFF control of timer available by external contact signal (OPEN/CLOSE).

1)Remote control in the central control room. 2)Multi-span operation system configuration with PLC, pressure witches, etc.

Output of operating status and operation completion signal of the timer (OPEN/CLOSE)

1)Checking operation of the central control room. 2)Alarm system configuration by using operating signal of lamp, buzzer, etc.

CE mark certified product (implementation of best reliability and quality by using all parts with CE authentication)

The operation of timer(START/STOP) by external signal(OPEN/CLOSE) can be controlled.

Possible to set local operations and remote controlled operations.

Single-span(1 cycle operation per 1 signal) and Multi-span(continuous operation till the input of a stop signal)

Output of 'Run' signal(timer in operation) and 'End' signal(output for 3 seconds when 1 cycle operation is completed)

Multi-span operation is possible up to 80 point.

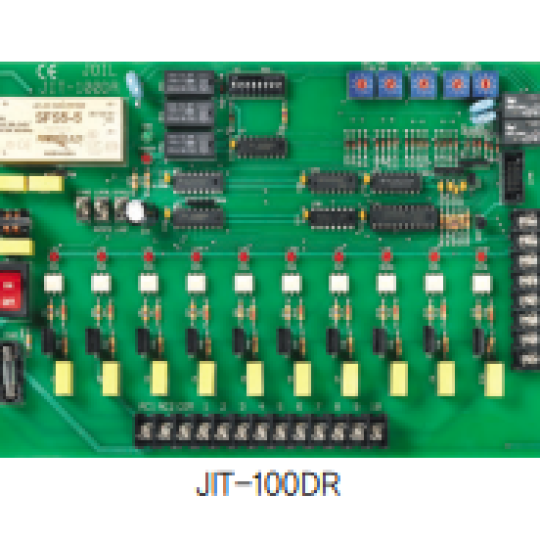

Description of the functions

Setting Switch:set ON/OFF time and number of valve operation. Card NO. Setting Switch Operation Setting Switch 1)setting local/ remote control External control connection terminal (dry contact) 2)setting single-span and multi-span 1) Start/Com/Stop terminal, Operated/Stopped by input signals. 2) Run/Com/Err, Operating state of the timer outputs by the signal. outputs(close for 3sec). Multi-Span type terminal: when it is used by connecting in multispan, it is connected by flat-connector.
