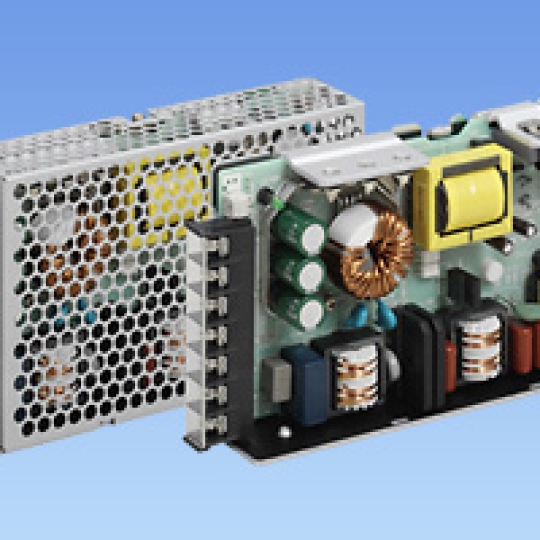

Bộ nguồn hãng Cosel PBA150F-24 Power Supply
PB(1) A(2) 150(3) F(4) - 5(5) - □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
C: with Coating
G: Low leakage current (0.15mA max/ACIN 240V)
E: Low leakage current and EMI class A (0.5mA max/ACIN 240V)
T: Vertical terminal block
J1: VH (J.S.T.) connector type (Only -12, -15, -24, -36, -48)
R: with Remote ON/OFF
N: with Cover (Only 24V UL508 is acquired)
N1: with DIN rail and Cover
V: Output voltage setting potentiometer externally
Contents | Specifications | |
---|---|---|
Input Voltage | AC85 - 264V 1Φ or DC120 - 370V * | |
Output | Wattage | 156W |
Voltage/Current | 24V 6.5A | |
Adjustable Voltage Range | 19.2 - 27.0V | |
Protection Circuit And Others | Overcurrent Protection | Works over 105% of rated current and recovers automatically |
Overvoltage Protection | 30.0 - 37.0V | |
Remote ON/OFF | Optional (Required external power source) | |
Remote Sensing | Optional (Only -3R3, -5 Option -K) | |
Others | - | |
Operating Temperature/Humidity | -10 to +71℃ (Required Derating) , 20 - 90%RH (Non condensing) | |
Safety And Noise Regulations | Agency Approvals (At only AC input) | UL60950-1, C-UL (CSA60950-1) , EN50178, EN62368-1 Complies with DEN-AN |
Conducted Noise | Complies with FCC Part15 classB, VCCI-B, CISPR22-B, EN55011-B, EN55022-B | |
High Attenuation | Complies with IEC61000-3-2 * | |
Others | Dimensions (WxHxD) | 34x93x168mm [1.34x3.66x6.61 inches] (without terminal block) |
Weight | 560g max (with cover: 630g max) | |
Cooling Method | Convection | |
Warranty Period | 5-year (Refer to Instruction Manuals) |
