Bộ nguồn hãng Power supply Cosel PBA600F-24 PBA-600F-24-F4
Features of PBA600F-24
• Super small-size & light weight
• Harmonic attenuator (Complies with IEC61000-3-2): except PBA1500T
• Universal input (AC85 - 264V): PBA1500T AC170-264V 3Φ
• Efficiency increased with synchronous rectification technology (PBA50F - 150F)
• Variety of option (PBA10F - 150F, PBW15F - 50F)
• Parallel operation and Parallel redundancy operation (PBA300F - 1500F, PBA1500T)
• Fan alarm, Remote ON/OFF and other functions (PBA300F - 1500F, PBA1500T)
-

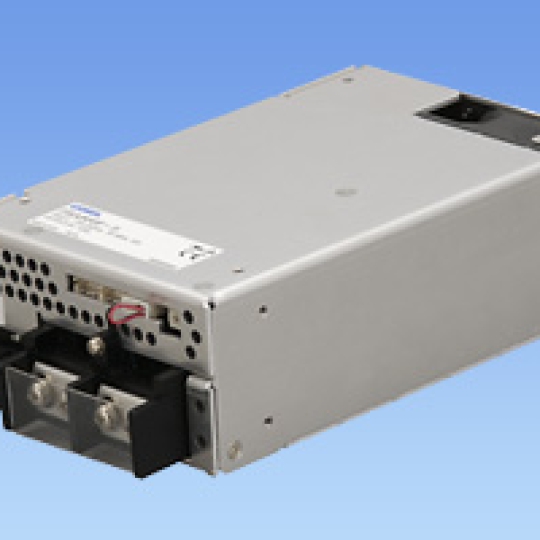

Cosel PBA600F-24
-
Liên hệ
-
3003
- Thông tin sản phẩm
- Bình luận
Specification
| Contents | Specifications | |
|---|---|---|
| Input Voltage | AC85 - 264V 1Φ or DC120 - 350V * | |
| Output | Wattage | 648W |
| Voltage/Current | 24V 27A ACIN 100V 24V 27 (31) A ACIN 200V |
|
| Adjustable Voltage Range | 16.50 - 26.40V | |
| Protection Circuit And Others | Overcurrent Protection | Works over 105% of rated current or 101% of peak current and recovers automatically |
| Overvoltage Protection | Vo+4.8 - 9.6V | |
| Remote ON/OFF | Provided | |
| Remote Sensing | Provided | |
| Others | - | |
| Operating Temperature/Humidity | -20 to +71℃ (Required Derating) , 20 - 90%RH (Non condensing) | |
| Safety And Noise Regulations | Agency Approvals (At only AC input) | UL60950-1, C-UL (CSA60950-1) , EN50178, EN62368-1 Complies with DEN-AN |
| Conducted Noise | Complies with FCC Part15 classB, VCCI-B, CISPR22-B, EN55011-B, EN55022-B | |
| High Attenuation | Complies with IEC61000-3-2 * | |
| Others | Dimensions (WxHxD) | 120x61x190mm [4.72x2.4x7.48 inches] (without terminal block and screw) |
| Weight | 1.6kg max | |
| Cooling Method | Forced cooling (internal fan) | |
| Warranty Period | 5-year (Refer to Instruction Manuals） | |
