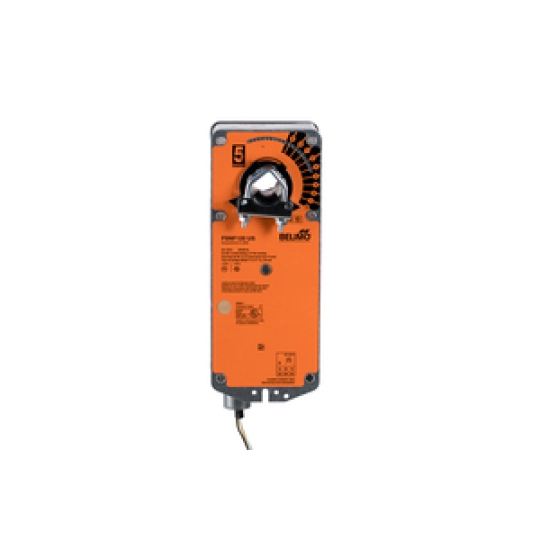

FSNF120 US

Fire & Smoke Actuator, 70 in-lb [8 Nm], Spring return, AC 120 V, On/Off

Specifications

Voltage AC/DC

AC 120 V

Power Consumption (Running) FS

27 VA

Power Consumption (Holding) FS

6 W, 9 VA (50 Hz 15 VA), End stop 55 VA, 0.5 A slow blow fuse *

Torque

70 in-lb [8 Nm]

Control Type

On/Off

Direction Of Motion Motor

selectable by ccw/cw mounting

Direction of Rotation (Fail-Safe)

Reversible with cw/ccw mounting

Angle of Rotation

95

Running Time (Motor)

15 s / 90°

Running Time (Fail-safe)

15 s

Protection category

IP40

Degree Of Protection NEMA

NEMA 1

Enclosure Type

UL Enclosure Type 1

Ambient Temperature

32...122°F [0...50°C ]
