Mechanical data Housing material Aluminium pressure casting

Electrical data Nominal voltage AC/DC 24 V

Nominal voltage frequency 50/60 Hz

Nominal voltage range AC 21.6...26.4 V / DC 21.6...26.4 V

Power consumption in operation 70 W

Power consumption for wire sizing 72 VA

Current consumption 3 A

Auxiliary switch 2 x SPDT, 1 x 3° / 1 x 87°

Switching capacity auxiliary switch 5 A, AC 230 V (I protective earth)

Connection supply / control Terminals 2.5 mm²

(Wire 2 x 1.5 mm² or 1 x 2.5 mm²)

Parallel operation No

Functional data Torque motor 90 Nm

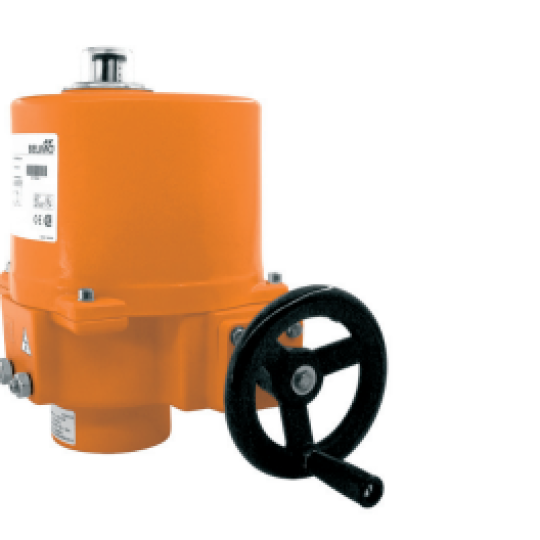

Manual override Temporary with handwheel (non-rotating)

Angle of rotation 90° (internal electrical end stops)

Running time motor 15 s

Duty cycle 30 % (= Active time 15 s / operating time 50 s)

Sound power level motor max. 70 dB(A)

Position indication Mechanical (integrated)

Safety Protection class IEC/EN I Protective earth

Degree of protection IEC/EN IP67

EMC CE according to 2004/108/EC

Low-voltage directive CE according to 2006/95/EC

Mode of operation Type 1

Control pollution degree 4

Ambient temperature -30...65°C

Non-operating temperature -30...80°C

Ambient humidity 95% r.h., non-condensing

Maintenance Maintenance-free

Mechanical data Connection flange F07

Weight Weight approx. 11 kg
