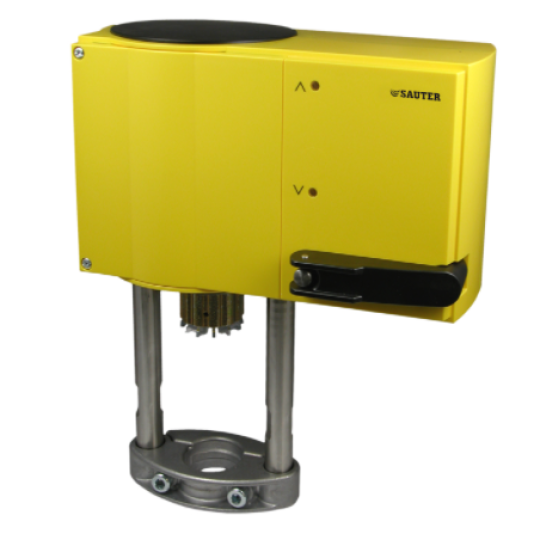

Bộ truyền động van AVM 234S: SUT valve actuator with positioner Ordering code AVM234SF132 I AVF234SF232 I AVF234SF132-5

Features

• Activation of 2-way and 3-way valves of the VQD/BQD and VQE/BQE series, as well as VUG/BUG,VUS/BUS, VUP and V6R/B6R

• For controllers with constant output (0...10 V or 4...20 mA) or switching output (2-point or 3-pointcontrol)

• Stepping motor with SAUTER Universal Technology (SUT) electronic control unit and electronic,force-dependent cut-off

• Simple assembly with valve; spindle is automatically connected after control voltage is applied (patented system)

• Automatic detection of applied control signal (constant or switched); indicated by two LEDs

• Coding switches for selecting characteristic and running time

• Type of characteristic (linear/quadratic/equal-percentage) can be set on the actuator

• Automatic adaptation to the stroke of the valve (min. valve stroke 8 mm, max. valve stroke 49 mm).

The measured stroke is saved and is not lost even in the event of a power failure

• Direction of operation can be selected via screw terminals when making the electrical connection

• Crank handle for external manual adjustment with motor cut-off and as trigger for a re-initialisation

• Numerous adapters enable the unit to be fitted onto non-SAUTER valves

• Power supply 230 V with module or direct connection for 24 V~ / 24 V=; continuous activation also

admissible with 230 V

• Maintenance-free gear unit made of sintered steel; gearbox base-plate made of steel

• Mounting column made of stainless steel; mounting bracket made of cast light alloy for fitting thevalve

• Electrical connections (max. 2.5 mm²) with screw terminals

• Three pre-scored cable inlets for M20 × 1.5 (2×) and M16 × 1.5

• Fitting vertically upright to horizontal, not suspended

Mã sản phẩm:
AVM234SF132
Giá:
Liên hệ
Lượt xem:
1742

Thông tin sản phẩm
Bình luận

Type Properties
AVM234SF132 Valve actuator with SUT positioner
AVM234SF132-5 Valve actuator, positioner 24V~ for DN 15...50, V6*/B6*
Accessories
Type Description
0313529001 Split-range unit for adjusting sequences, fitted in separate junction box
Modules can be added for 2-point/3-point and continuous activation; additional power 2 VA
Type Description
0372332001 230 V ±15%, supply voltage
0372332002 100 V ±15%, supply voltage
Auxiliary change-over contacts (2 each) 12...250 V~
Type Description
0372333001 Infinitely variable, min. 100 mA and 12 V permissible load 6(2) A
0372333002 Gold-plated contacts, from 1 mA, to max. 30 V, wider range 3(1) A
Potentiometer
Type Description
0372334001 Potentiometer, 2000 Ω, 1 W; 24 V
0372334002 Potentiometer, 130 Ω, 1 W; 24 V
0372334006 Potentiometer, 1000 Ω, 1 W; 24 V
Adapters for high temperatures
Type Description
0372336180 Adapter (required when temperature of the medium is 130...180 °C)
0372336240 Adaptor (required when temperature of the medium is 180...200 °C)
Mounting set for AVM234SF132 on SAUTER valves (no adapter needed for 0372338 002)
Type Description
0372338001 V/B6 to DN 50, V/BXD, V/BXE, to DN 50, stroke 14 mm
0372338002 V/B6 DN 65...150, V/BXD, V/BXE from DN 65, stroke 40 mm
0372338003 Conversion kit from AV*2*4SF132-5 to standard actuator AV*2*4SF132
0372338004 Conversion kit from AV*2*4SF132-6 to standard actuator AV*2*4SF132
Adapter set for non-SAUTER valves
Type Description
0372376010 Siemens with 20 mm stroke or Ø 10 mm spindle
0372376014 Siemens with 40 mm stroke or Ø 14 mm spindle
0372377001 Johnson Controls DN 15…150, 14, 25, 40 mm stroke, Ø 10, 12, 14 mm spindle
0372378001 Honeywell with 20 mm stroke
0372378002 Honeywell with 38 mm stroke

0372386001 LDM type RY113 R/M
0372389001 ITT-Dräger, DN 15…32
0372389002 ITT-Dräger, DN 40…50
0378263001 End stop (needed for V/BXD, V/BXE DN 15…50, V/B6 DN 15 with kvs ≤ 1 m3/h)
0386263001 Cable screw fitting M16 × 1,5
0386263002 Cable screw fitting M20 × 1.5
0372461001 Forced operation for AV×2×4S
0372387001 SAUTER Satchwell VZF1727 mounting set
0510390052 Adapter set for non-SAUTER valves (Frese), stroke 20 mm
0510390053 Adapter set for non-SAUTER valves (Frese), stroke 40/43 mm
