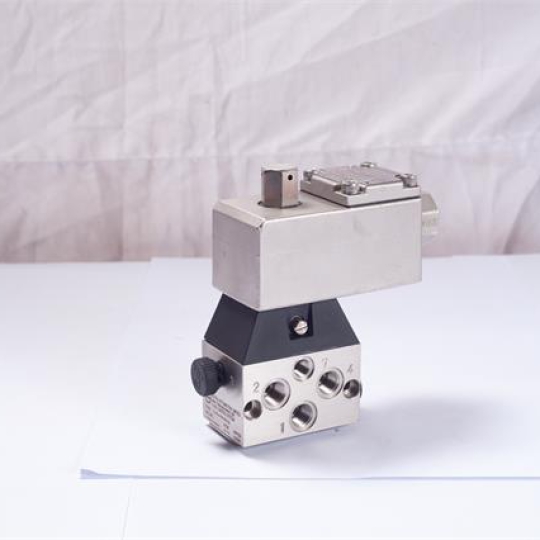

Type of Valve : 5/2 Internal Pilot operated Low power, Single Solenoid Valve

Ordering Code : P5001-6-2R-B5+I-24V-DC-22-LW2-H

Item Code : F803000887

Port Connection : 1/4" NPT (F)

Orifice Size (mm) : 6mm

Flow Factor (kv) : 12 LPM

Body Material : Stainless Steel 316 with internal wetted parts of Stainless Steel 316

Manual Override : Manual Override Provided Push to operate momentarily, for stayput using Screw Driver

push & turn CW to operate valve

Seat Seal Material : NBR

Media : Air

Main Pressure : 2 - 10 bar

Media Temp Range : -25°C to +75°C

Type of Solenoid : DIN plug Solenoid, DIN 43650B PG9 Cable Entry, IP67

Size of Coil : I

Enclosure Material : Nylon Moulded

Voltage : 24V DC (-20%, +20%)

Power of Coil : 2W

Insulation Class : H

Approval : Weather proof

Coil Certificate nr. : KLPL/BTG/18/09-87

Marking : Weather Proof IP67
