Description

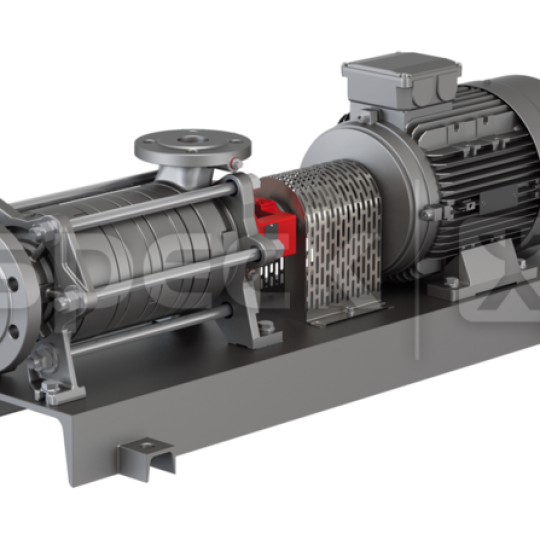

Side channel pumps with NPSH suction stage

With mechanical seal or magnetic coupling

Multi-stage

Self-priming

Suitable for the delivery of gas shares

Nominal pressure PN 40

Media

Water max. 180 °C

Oil: -100 – 350 °C

Motor

0,37 – 55,0 kW, 3~Mot

Material design

Stainless steel

Bronze

Spheroidal graphite cast iron

Suction connection

DN 40 – DN 100

Pressure connection

DN 20 – DN 65

Sealing

Separating can / Magnetic drive Mechanical seal

Dimensions (WHD)

-/-

Applications

Power engineering

Delivery of hot water in boiler sytems

Recovery of condensates (water)

Delivery of liquid gas

Ship building

Delivery of salt water and fresh water

Further applications

Extraction of palm-oil

Advantages

Robust design

Long service life and low maintenance costs

High operational safety

Application under difficult conditions in industry

Magnetic coupled version is leakage- and maintenance-free

Combined pump for the delivery of liquids at unfavourable suction-side conditions

Supply heads of less than 0.5 m after consultation with the works

Pump application for liquids close to boiling point

Very favourable NPSH behaviour

Low dynamic load (n = 1450 rpm)
