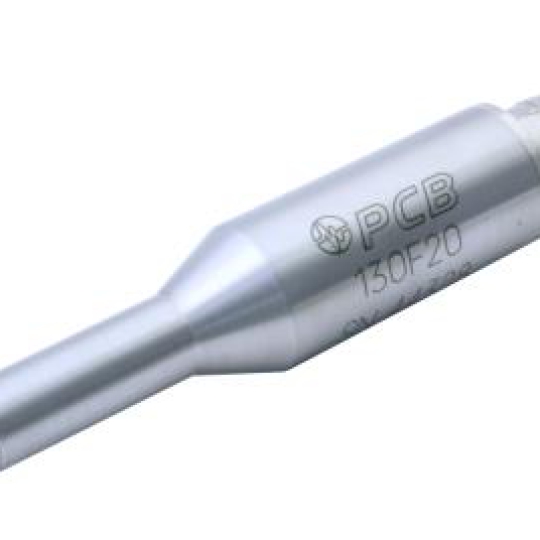

Cảm biến 130F20 PCB | ICP Electret Array Microphone
ENGLISH: | SI: | ||
---|---|---|---|
PERFORMANCE | |||
Nominal Microphone Diameter | 1/4" | 1/4" | |
Frequency Response Characteristic (at 0° incidence) | Free-Field | Free-Field | |
Frequency Response (±2 dB) | 20 to 10000 Hz | 20 to 10000 Hz | |
Frequency Response (±3 dB) | 10 to 16000 Hz | 10 to 16000 Hz | |
Frequency Response (±4 dB) | 10 to 20000 Hz | 10 to 20000 Hz | |
Phase Match (100 Hz to 3 kHz) | ±3 ° | ±3 ° | [ 1] |
Phase Match (50 Hz to 5 kHz) | ±5 ° | ±5 ° | [ 1] |
Phase Match (5 kHz to 10 kHz) | ±10 ° | ±10 ° | [ 1] |
Sensitivity | 45 mV/Pa | 45 mV/Pa | |
Sensitivity (+/-3 ) (@ 250 Hz) | -26.9 dB re 1 V/Pa | -26.9 dB re 1 V/Pa | |
Inherent Noise (Linear) | 29 dB re 20 µPa | 29 dB re 20 µPa | [ 1] |
Inherent Noise (A Weighted) | <26 dB(A) re 20 µPa | <26 dB(A) re 20 µPa | |
Inherent Noise (A Weighted) | 24 dB(A) re 20 µPa | 24 dB(A) re 20 µPa | [ 1] |
Dynamic Range (3% Distortion Limit) | >122 dB re 20 µPa | >122 dB re 20 µPa | |
TEDS Compliant | Yes | Yes | [ 2] |
ENVIRONMENTAL | |||
Temperature Range (Operating) | +14 to +122 °F | -10 to +50 °C | |
Temperature Effect on Output (-10 to +50 °C) | 0.7 dB | 0.7 dB | [ 1] |
ELECTRICAL | |||
Excitation Voltage | 18 to 30 VDC | 18 to 30 VDC | |
Constant Current Excitation | 2 to 20 mA | 2 to 20 mA | |
Output Bias Voltage | 5.5 to 14 VDC | 5.5 to 14 VDC | |
Output Impedance | <150 Ohm | <150 Ohm | |
PHYSICAL | |||
Housing Material | Stainless Steel | Stainless Steel | |
Electrical Connector (Output) | BNC Jack | BNC Jack | |
Size - Diameter (overall) | 0.5 in | 12.7 mm | |
Size - Length (overall) | 2.63 in | 66.8 mm | |
Size - Diameter (head) | 0.28 in | 7 mm | |
Size - Length (head) | .87 in | 22.1 mm | |
Weight | 0.90 oz | 25.5 gm | [ 1] |
* All specifications are at room temperature unless otherwise specified
.
