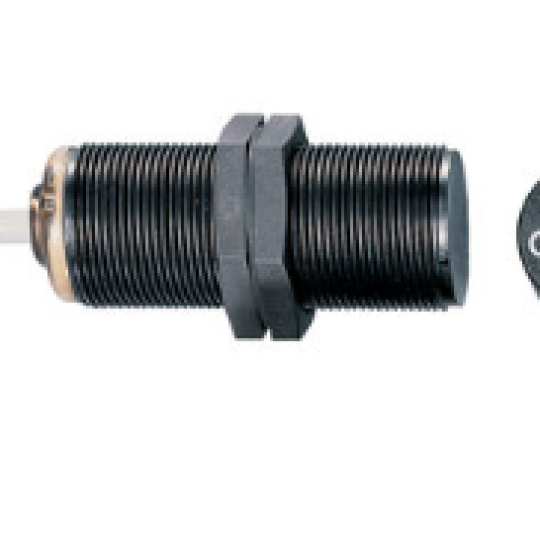

Cảm biến an toàn Schmersal BNS 300-01ZG Item number: 101110514

Thermoplastic enclosure

Long life

Suitable for food processing industry only in combination with BPS 303

no mechanical wear

Ø M30

Insensitive to transverse misalignment

Insensitive to soiling

With integral evaluation

Mã sản phẩm:
Giá:
Liên hệ
Lượt xem:
1353

Thông tin sản phẩm
Bình luận

Ordering data

Product type description	BNS 300-01ZG
Article number (order number)	101110514
EAN (European Article Number)	4030661048895
eCl@ss number, version 9.0	27-27-24-02
eCl@ss number, version 11.0	27-27-24-02
ETIM number, version 7.0	EC002544
ETIM number, version 6.0	EC002544

Approvals - Standards

Certificates

cULus

EAC

General data

Standards	BG-GS-ET-14 IEC 60947-5-3
Coding level according to ISO 14119	Low
Working principle	Magnetic drive
Installation conditions (mechanical)	quasi-flush
Enclosure material	Glass-fibre, reinforced thermoplastic
Material of the nuts	Thermoplastic
Gross weight	110 g

General data - Features

Integral system diagnostics, status	Yes
Safety monitoring module integrated	Yes
Number of openers	1
Number of safety contacts	1
Number of cable wires	4

Safety classification

Standards	EN ISO 13849-1
Mission time	20 Year(s)

Safety classification - Safety outputs

B_10D Normally-closed contact (NC)

20,000,000 Operations

Mechanical data

Actuating element	Magnet
Direction of motion	Head-on to the active surface
Tightening torque of nuts, maximum	3 Nm

Mechanical data - Switching distances according EN IEC 60947-5-3

Assured switching distance "ON" S_ao	5 mm
Assured switching distance "OFF" S_ar	15 mm

Mechanical data - Connection technique

Type of connection	Cable
Length of cable	1 m
Wire cross-section	0.75 mm²
Wire cross-section	18 AWG
Material of the Cable mantle	PVC

Mechanical data - Dimensions

ISO thread of the sensor	M30
width across flats	36 BK
Length of sensor	78 mm

Ambient conditions

Degree of protection	IP67
Ambient temperature, minimum	-25 °C
Ambient temperature, maximum	+55 °C
Storage and transport temperature, minimum	-25 °C
Storage and transport temperature, maximum	+70 °C
Resistance to vibration to EN 60068-2-6	10 … 55 Hz, amplitude 1 mm
Restistance to shock	30 g / 11 ms

Electrical data

Voltage type	DC (direct current)
Switching voltage, maximum	250 VAC
Switching current, maximum	3 A
Switching capacity, maximum	750 W
Switching frequency, maximum	5 Hz

Electrical data - Relay outputs

Voltage, Utilisation category DC-13	24 VDC
Current, Utilisation category DC-13	0.03 A

Status indication

Note (Integral System Diagnostics, status )

The LED is illuminated when the guard is closed.

Scope of delivery

Scope of delivery	Actuators must be ordered separately.
Scope of delivery of mounting material	2x nuts M30 x 1.5

Accessory

Recommendation (actuator)

BPS 300

BPS 303

BPS 303 SS

Recommended safety switchgear

SRB-E-301ST

SRB-E-201LC

Note

Note (General)

Contact symbols shown for the closed condition of the guard device.
